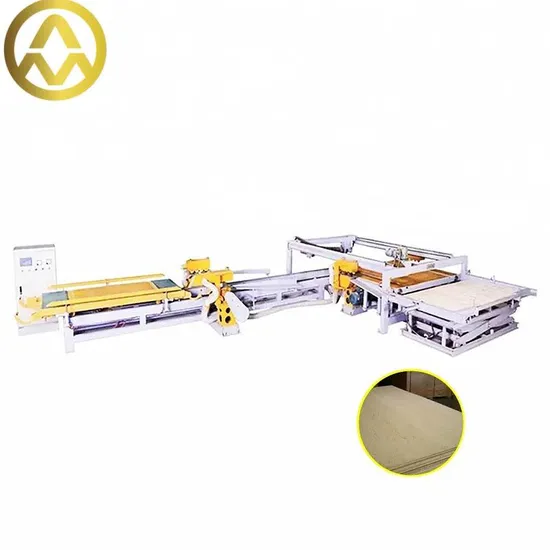

Full Automatic Four Edge Plywood Trimming Cutting Saw Machine for Plywood

Product Description

Detailed Photos
Product Description
TECHNICAL PARAMETERS

Model	DDS48
Main frame material	100*120 mm square steel tube
Cutting size	1220*2440 mm
Cutting thickness	maximum 60 mm
Diagonal tolerance	less than 1 mm
Straightness tolerance	less than 0.5 mm
Saw head	Casting, fine finishing
Bearings	NSK (Japan brand)
Voltage standard	380V, 50HZ
Pneumatic element	AKS
PLC brand	SIMENS
Touch screen displayer	SIMENS
Main elctrical parts	CHINT
Inverter	DELTA
Feeding speed	0-30 meters per minute, adjustable
Line speed	5315 meters per second
Saw blade speed	6800 turns per minute
Electrical control panel	dust-free and powder painting
Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
	small saw blade head 1.1KW, 4 pieces
	lift table motor 3 KW, 1 piece
	working table motor 1.5 KW, 2 pieces
The first saw guide rail	30 mm diameter , Six arrises guide
The second saw guide rail	30 mm diameter , cylindrical guide
Saw blade	4 big saw blade, 4 small saw blade (Germany BAK brand)
Gross weight	4800 KGS (fixed with screw and can load with 1*40HC container)

Company Profile

WHAT WE DO
SERVICES
Packaging & Shipping
Certifications

FAQ

FAQ

1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provideS one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.

---
