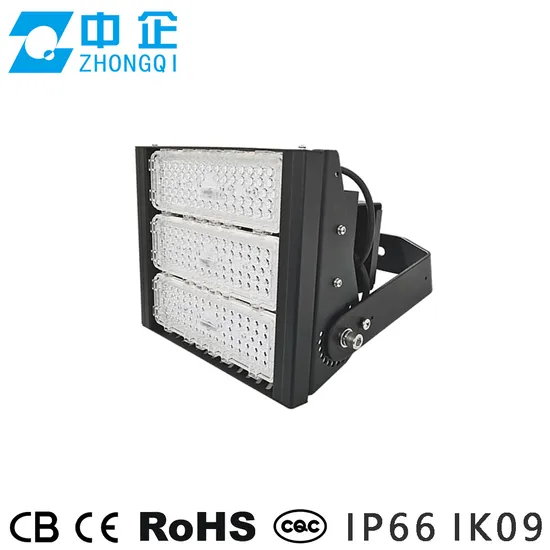

Hot Sale Factory Price LED Outdoor Lighting / Customized LED Flood Light with Smart LED Driver Sensor CE RoHS / LED Light Outdoor Light Stainless Steel Bracket

US$37.00-213.00 1 Set (MOQ)

Basic Info.

Model NO.
TYZQ-FD015-A
Power
150W~180W
Projection Distance
25-35m
Application
Park, Square, Factory, Garden
Certification
CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, REACH, RoHS, SAA, SASO, VDE
Operating Voltage
100-240V
Input Voltage
220V
LED Chips Brand
Epistar
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
8 15 25 30 40 60 90 120 Degree Asymmetric
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector
LED Type
5050 / 3030 /3535 LED Chip
Option
Light Shied / Light Visor
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
3G Vibration / 5g Vibration
Installtion
Bracket Adjustable
Service
Dialux Light Simulation
Application 2
Stadium Sport Public Area Flood Airport Lighting
System Power
50W 60W 100W 120W 150W 200W 250W 300W 360W
Surge Protection
10kv SPD / 20kv SPD Projector
Transport Package
Carton
Specification
340*248*316mm
Trademark
ZQ
Origin
China
HS Code
940542900
Production Capacity
2000000

Packaging & Delivery

Package Size
700.00cm * 450.00cm * 250.00cm
Package Gross Weight
10.000kg

Product Description

Product Description
Product Features
Patented design combined with many advanced technologies
High strength Aluminium extruded housing, modular design, strong resistance to impact and corrosion
2G vibration test approved under American standard ANSI C136.31.
Multiple beam angles for your options: 12/25/40/60/90/Asymmetric
Single or multiple LED module arrays at your options, to provide more power range for different application environment
LED modular design offers simple maintenance
IP66 IK08, suitable for various application environment.
Stainless mounting bracket for options
Product Parameters
TECHNICAL PARAMETERS
Item name Input voltage Freqency range Power Factor CRI CCT Lifetime Ta
Flood light AC90-305V 50/60HZ 0.95 >70 2200-6500K >50000H -25ºC~55ºC
IP Grade IK LPW THD Dimming Color J-BOX Lens degree
IP66 IK08 100-160 ≤20% YES Customized Optional 25/40/60/90/
Asymmetric
Product Model Power(W) Premium LPW(lm/W) Standard LPW(lm/W) N.W.(kg) G.W.(kg) Product Size(mm) Packaging Size(mm)
TYZQ-FD015A 50 160 130 4.50 5.30 336*118*302 430*295*235
TYZQ-FD015A 60 160 130 4.50 5.30 336*118*302 430*295*235
TYZQ-FD015A 100 160 130 5.30 6.20 336*168*302 430*315*235
TYZQ-FD015A 120 160 130 5.50 6.40 336*168*302 430*315*235
TYZQ-FD015A 150 160 130 6.10 7.10 340*248*316 335*390*235
TYZQ-FD015A 180 160 130 6.30 7.30 340*248*316 335*390*235
TYZQ-FD015A 200 160 130 7.20 8.20 340*328*316 405*390*235
TYZQ-FD015A 240 160 130 7.40 8.40 340*328*316 405*390*235
TYZQ-FD015A 300 160 130 9.90 11.10 340*408*333 465*390*265
TYZQ-FD015A 360 160 130 10.90 12.40 340*488*333 545*390*265
TYZQ-FD015A 400 160 130 15.70 16.70 571*384*334 660*460*235
TYZQ-FD015A 480 160 130 15.60 17.40 571*384*334 660*460*235
Product Details

Product Applications
Company Profile
Packaging & Shipping
FAQ Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
