90-315B Hydraulic Butt Welder for PE, PB, PVDF Pipes 90-315 mm

Product Description

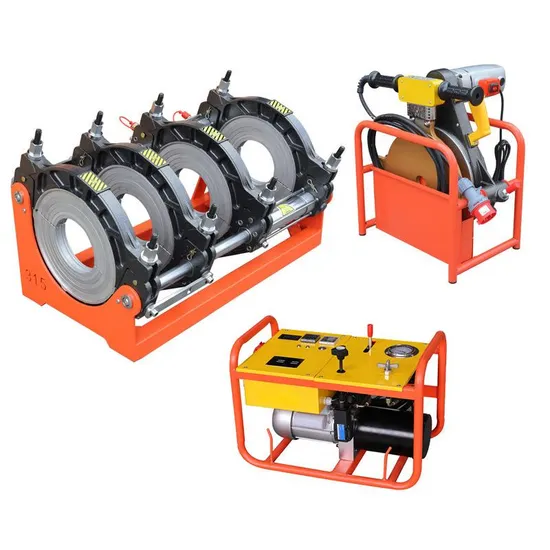

Product Description This pipe fusion welding equipment is designed for thermoplastic pipe installations. The whole set includes a frame, a milling cutter, a heater, a hydraulic unit and a support. This set of butt fusion welding equipment is highly durable and affordable to maximize plastic pipe fusion procedures and reduce fusion costs. It is applicable for welding of such materials as PE, PPR, PB, PVDF. We offer a variety of options for each pipe size that you need to weld. You may refer to the following tables or ask us for more details. Product Features 1. Rack The thickened steel structure is integrated, which shall not deform long-term use. The quick coupling of high quality is durable and oil-tight. 2. Hydraulic unit The hydraulic unit is of enclosed structure, which can efficiently prevent sundries from entering into the inner machine. The motor with pure cooper coils is stable and of good quality. 3. Milling cutter All-gear system providing highly-efficient driving is adopted for the milling cutter, which is stable and durable. It is equipped with precise pressure-casting cutter and high speed steel blade, as well. 4. Heating plates Coated with coating, the heating plates are easy to warm up and can be heated evenly and easy to shed from pipes, without sticking pipes. 5. High-power copper core motor Copper core motor of high quality is adopted. The resistance is lower and the heat-conducting property is good. Product Parameters

Model	90-315B
Welding Range	90-315mm
Heating Plate Max. Temp.	270ºC
Operating temperature	170-250ºC
Temperature deviation	±5ºC
Pressure adjustable ranges	0-16MPa
Voltage	220V/50Hz, 1PH
Heating plate power	3.1kW
Milling cutter power	1.1kW
Hydraulic unit power	0.75kW
Applicable materials	PE, PPR, PB, PVDF
Standard clamp size	90-110-125-140-160-180-200-225-250-280-315mm

Packaging & Shipping Company Profile Henan E-Work Industrial Equipment Co., Ltd., which is established in 2013 and located at Zhengzhou Airport Economy Zone in Zhengzhou, the provincial capital of Henan Province in central China, is devoted to R&D, manufacturing and marketing of pipeline cold cutting tools, pipeline squeezing tool with pressure, etc., and providing professional service in respect of pipeline construction, detection and relevant systematic solutions. Aiming at "Being a pipeline processing expert" and "Making work easier and more efficient", E-Work keeps investing in product design and technological innovation, which makes it possible for E-Work to take the lead in the industry of cold cutting tools. With outstanding quality and efficient performance, our self-developed pipeline cold cutting tools are deeply accepted and widely used by companies such as CNPC, Sinopec, CHINA RES GAS, XinAo Gas, etc. Our company not only has skilled staff, but also has established strict quality management system and fine after-sales service system. The company performs scientific management and technological innovation. We promise to provide customers with word-class products, and we sincerely look forward to cooperating with the customers from all over the world.

---
