US$2.50-5.00
|
100 Pieces
(MOQ)
|
Basic Info.
Measuring Range
Medium-pressure Gauge
Type
General Pressure Gauge
Application
Industrial, Civil
Structure
Bellows Pressure Gauge
Connection Type
Bottom and Center Back with Surface
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Dial
2.5"/2"/4"/6"/as Your Request
Connection
Metric Thread, NPT, Bsp (G, PF), BSPT (Zg, PT)
Dial Plate and Pointer
Aluminium
Ring
Stainless Steel (Roll Ring or Bayonet Type)
Case
SS304/as Your Request
Transport Package
Meite/Neutral/as Your Request
Specification
Export Standard Packing/as Your Requet
Trademark
Meite/neutral/as your request
Production Capacity
10000000pieces/Year
Product Description
Product Description

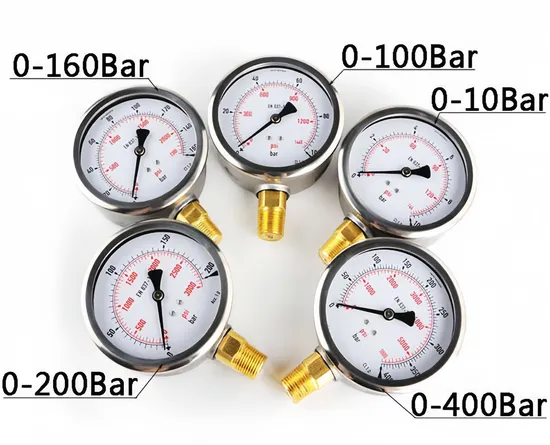

| Dry Stainless Steel Pressure Gauge |
| Main Technique Data | | |
| Stainless steel pressure gauge | Dials Size | 2"(50mm), 2.5(63mm), 4(100mm) and 6 (150mm) |
| Case | SS304 |
| Pressure range | 0 -100MPa, other scale units bar, psi, kg/cm2 etc.optional |
| Ring | Stainless steel (roll ring or bayonet type) |
| Movement | SS304,SS316(brass optional) |
| Socket | SS304, SS316(brass optional) |
| Bourdon tube | SS304, SS316(brass optional) |
| Dial plate and pointer | Aluminum |
| Window | Glass, safe glass |
| Connection sizes | 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case |
| Connection threads | Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT) |
| Mounting | Bottom,back and panel |
| Accuracy | 2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6% |
| Pressure limitation | Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value |
