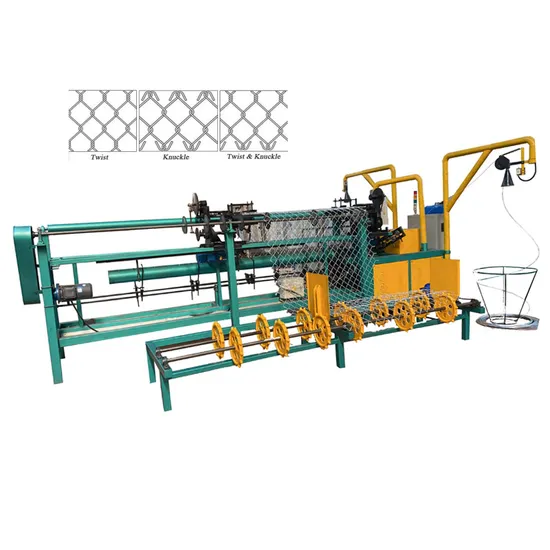

Full Automatic PLC Chain Link Fence Diamond Mesh Machine

Product Description

Full automatic chain link fence machine

wire diameter	mesh size	width
1.5-4.5mm	35*35-120*120mm	1000-6500mm

Full Automatic Chain Link Fence Machine is a new automatic type machine for Chain Link Mesh. It is develops on the basis of semiautomatic mechanical and the mechanical and electrical completely automatic machine, It is a comprehensive model machine, that gather the machinery and pneumatic. And its structure is very simple, the weight is light, and take less place. And it adopt the new Frequency and electronically controlled clutch, can operated convenient and maintenance simply. The general knowledge is very easy to hold, onespecialized worker can operated several sets machine,the output is high, it is the best choice for the Business, factories,and individual.

Wire diameter:1.6-4.5mm
Maximum width: 6500mm
Mesh size:25*25mm-100*100mm
Motor: 3.0KW one set, 1.5kw one set, 0.75kw two sets, 0.12KW one set
Output : 120m2/hour
Weight of machine: 3200kgs
Outsides of machine: 5800*1500*2300mm
The side cut wire and bending or twisted is automatically, The machine automatically stops as soon as it reaches the length production setting.,The machine can produce chain link fence with both Galvanized Wire and PVC Coated wire.

Parts detail: wire pay-off two sets, wire forming parts one sets, wire weaving parts one set, mesh roller one sets, mesh compact machine one set.

Detail picures
1.Feeding and weaving parts
2.PLC touch screen and control cabinet
3.mold and cutter
4.knocked parts with spare twist parts and tools,compact and roller
5.details parts
Packaging & Shipping
The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also
Company Information
1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.
2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on.
FAQ
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case

---
