China with Scale 5-12.5m Maximum Lift/Lifting Height 1.5t 2t 2.5t 3t Retractable Fork Electric Reach Truck Price for Narrow Aisles/Pallet/Forklift/Stacking

Product Description

Product Description
Features:
1.Standard AC AC pressure and EPS electric powered electricity steering, higher sense and decrease strength consumption;
2.Smaller body dimension with smaller turning radius and proper perspective stacking channels;
3.With the pace restriction feature of turning, the computerized deceleration of turning can correctly guard the protection of items and operators;
4.Ergonomic design: handy to function valve stem and multi-function shrewd instrument, some fashions with wheel show function;
5.Advanced Curtis controller, greater secure and safer;
1.Superb Working Environment
Load Control: Precise, effortless fingertip control of all mast movements
Ergonomic seat fully adjustable to the operator's personal preferences
Adjustable steering console
2.Stability
Chassis designed and built for maximum strength and durability
Heavy-duty construction materials and components provide low centre of gravity for stability and high residual capacities
3.Fast change of forward-reverse direction without shifting feet on pedals
Short pedals stroke
Reduced operator fatigue and increased productivity
4.Precision
Responsive progressive and adjustable electric steering with essential 'road feel'
Digital instrument display for instant readout of truck status
5.Servicing
Maintenance-free AC traction and lift motors
Configurable TOPWIN Digital Control System, incorporated diagnostic technology
Easy service access
Up to 1000 operating hours between services
Forklift Truck Main Specs.: Product Parameters

Model		ERF15	ERF20
Power Type		electric	electric
Operation Type		Stand-up	Stand-up
Load Capacity	Q(kg)	1500	2000
Load Center	C(mm)	500	500
Front Overhang	X(mm)	145	145
Wheelbase	Y(mm)	1399	1584
Service Weight(With Battery)	kg	2200	2250
Wheel Type		Polyurethane	Polyurethane
Front Wheel	∅×w(mm)	254*104	254*104
Drive Wheel	∅×w(mm)	230*75	230*75
Balance Wheel	∅×w(mm)	150*50	150*50
Wheel tread, Front wheel	b10(mm)	978	978
Wheel tread, Rear wheel	b11(mm)	804	804
Mast Height, Lowered	h1(mm)	2120	2120
Lifting Height	h3(mm)	4500	4500
Height,mast entended	h4(mm)	5485	5485
Height of overhead guards	h14(mm)	2308	2308
Fork face min.ground clearance	h13(mm)	35	40
Fork tilting angle Front/Rear	α/β(°)	3/5	3/5
Overall Length	l1(mm)	2272	2460
Body Length	l2(mm)	1703	1888
Overall Width	b1(mm)	1098	1098
Fork Size	s/e/l(mm)	35/100/1070	40/122/1070
Fork Spread	b5(mm)	210-705	244-705
Reach Distance	L(mm)	500	600
Min.ground clearance	m2(mm)	77	77
Aisle Width for Pallet 1000*1200 crossways	Ast(mm)	2771	2880
Min.turning radius	Wa(mm)	1600	1781
Max. travel speed (Unladen/Laden)	km/h	5/4	5/4
Lifting Speed (Unladen/Laden)	m/s	0.135/0.110	0.135/0.100
Lowering Speed (Unladen/Laden)	m/s	0.085/0.132	0.085/0.140
Max.grade Ability (Unladen/Laden)	%	8/4	8/4
Service Brake		electromagnetic	electromagnetic
Drive Motor	kw	2.5	2.5
Lift Motor	kw	3	3
Battery Type		Lead Acid	Lead Acid
Battery voltage/nominal capacity	V/Ah	24V280Ah	24V280Ah
Charger	V/A	24V/40A	24V/40A
Type of drive control		comminicate	comminicate
Sound level at the driver's ear acc. to EN12053	dB(A)	75	75

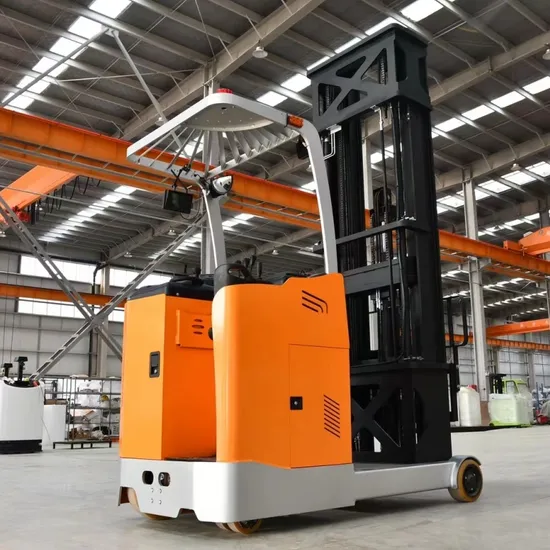

Detailed Photos
Outdoor Capability with the Indoor/Outdoor Moving Mast Reach Truck
Typically, Reach Trucks do now not have the functionality to be used outdoors. With the Indoor/Outdoor Moving Mast Reach Truck, operators now have that functionality. Due to the diameter of its long lasting wheels, excessive floor clearance, and a couple of climate safety picks to decorate driver comfort, the Indoor/Outdoor Moving Mast Reach Truck is a versatile operation that can supply most advantageous visibility in out of doors conditions.
TOPWIN Reach Truck fashions provide step forward lifting heights and capacities, making it handy to transport and shop substances shortly and efficiently. Talk with your neighborhood licensed TOPWIN Forklift Dealer these days to study extra about Toyota's latest Reach Trucks and how to add them to your fleet! Company Profile
Our factory
Our main storage equipment are electric truck, stacking car, reach forklift trucks, towing vehicle, order picker, AGV pilotless truck, counter balanced weight forklift and so on. It is widely used in various places of modern logistics.
FAQ: Q1: Are you Forklift and Attachment factory? A1: Yes, we are the professional manufacturer of Forklift and Attachment Q2: How about the delivery time? A2: About 15-30 days based on different model. For the standard products, we may have stock and could delivery immediately. Q3: Is customized solution available? A3: Yes, we can provide different customized solution. Q4: Can you provide OEM service? A4: Yes.

---
