Foldable Stick Size RFID Ear Tag/Microchip Stick Reader

Product Description

DWELL-BLE01 Ear Tag Reader provides basic RFID reader
functions of reading, displaying, and transmitting via Bluetooth module.

1.Physical characteristics
Size of reading head: φ50mm
Size of length:45cm to 120cm
Weight:≤0.3kg
Screen:2.08inches

2. Environmental
Operating Temperature Range ‐10 to 50 °C
Storage Temperature Range ‐20 to 65 °C
Humidity Max: 90%

3. Electronic
Battery Capacity:3000mAh
continuous working time:20hour
Communication mode: Bluetooth
Frequency: 134.2 KHz
Reading range: 5‐10CM
Waterproof of reading head: IP57
Compatible with the ISO Standards 11784 and 11785, with FDX‐B, HDX
capability

4.Bluetooth connection
You can choose any equipment which has Bluetooth and Virtual
keyboard(like Notes,excel,word etc) functions as your mobile
terminal,like i Phone ,ipad etc.
Open the Bluetooth function of the mobile terminal, and then

Connect our device 'Ear Tag Reader'.
Open the notes(for example), create a new or open an existing note,
the blinking cursor notice that the equipment is ready for receiving data
from the reader.

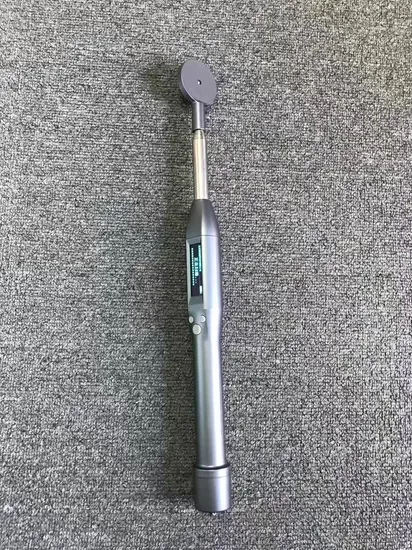

Rfid animal reader photo
Certification

---
