High Quality Chinese Manufacturers CNC Lathe Machine Ck6142 for Processing Metal Shafts/Sleeves/Discs Parts

Product Description

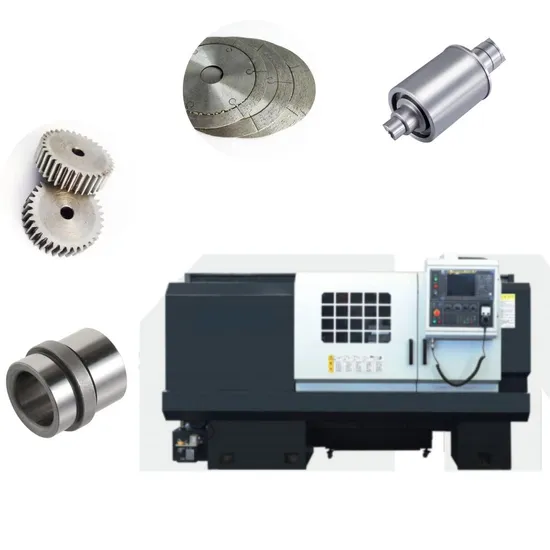

CNC Lathe Machine CK6142
This series of lathes adopts an integrated one-piece machine bed, suitable for the drilling, expansion, and reaming of the inner and outer surfaces of various shafts, sleeves and discs parts with complex shapes.
Specification:

Model No.
Item No.	CK6142
Specifications
Swing over bed	420 mm
Swing over carriage	210 mm
Max.length of workpiece	500 750 1000 1500 2000 3000 mm
Max.turning length	350 600 830 1330 1830 2830 mm
Pan of guideway	400 mm
Spindle
Spindle nose	A2-6
Spindle bore	58 mm
Taper hole of spindle	Metric system 63
Range of spindle speeds	27.5~2200 r/min
No.of spindle speeds	Infinitely variable speed
Center height from bed	225 mm
Chuck	200 mm
Feed motion
Min.feed increment	0.001/0.001 mm
Rapid speeds	4000/5000 mm/min
Max travel of X	280 mm
Tool post&Tailstock
Turret working position	V4 (192x192)
Indexing time	2.4s
indexing repeatility	0.009 mm
Section oftoolshank	25x25 mm
Dia./Travel of tailstock	85/150 mm
Taperhole oftailstock	Mores 5
Other
Workpiece accuracy	IT6-IT7
Surface roughness	Ra1.6
Main power	7.5kw
Lathe mass	2600 2700 2800 3100 3500 4200 kg
Length	2630 2740 2990 3560 4040 5040 mm
Width/Height	1500/1810 mm
CNC System	Fanuc 0i-TF /gsk988TD

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
