S245 Single Arm Resin Sand Mixer

Product Description

S245 Single Arm Resin Sand Mixer

Company Introduction:
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based"since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Product Introduction:
(1)S245 single arm high speed continuous mixer with a high speed mixer blade throwing cage new technology, so that the sand continuous and uniform, high efficient, reduce the labor intensity of the operator.
(2)The curing agent used imported metering pump, make adjustment more convenient, more accurate, more convenient to use and maintenance.
(3)The machine is easy and reliable operation, according to the different characteristics of the need to adjust the process to select, for continuous mixing no bake sand and water glass sand, also applies to the viscosity of 0.3-100mm2/s liquids and similar materials sand uniformly mixed system.
Technical Parameter:
(1) Type S245
(2) Productivity 5t/h
(3) Outlet sand height 1200mm
(4) Mix sand stirring cage radius 1500mm
(5) Main motor 4kw
(6) Speed 960rpm
(7) Sand stirring cage rotation angle ≥270 °
(8) Compressed air pressure 0.5-0.6Mpa
(9) Compressed air consumption 0.08 m3 / h
(10) Resin, curing agent quantitative accuracy ≤±2%
(11) Power 380V,50HZ,3Phase,Control 220V 50HZ

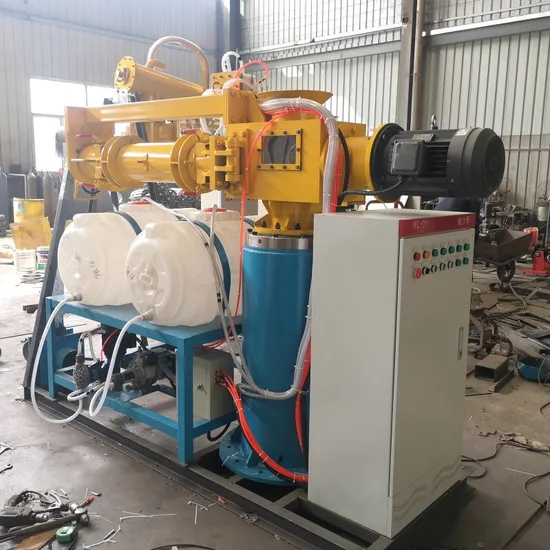

Pictures for Reference:
We can do customized.
FAQ:
Q:How many days do you need to produce this machine?
A: Usually 15-25 days,it depends on the machine and power mode,
customized type will be 30-45 days,for production line equipments will take 2-3 moths.
Q: How to control your quality ?
A:First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.For the smaller machine we will install the machine at our workshop to make sure it can work well.For the bigger machine, we will install the machine for our customers until it can work well.
Q: What's your machine quality guarantee?
A:Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you install the machine overseas?How long will it take?
A: Yes,we can arrange the engineer to come to help install,need to pay accordingly,like round trip tickets,salary,living and eating,etc.Time depending on the equipment your order,usually 30-60 days.

---
