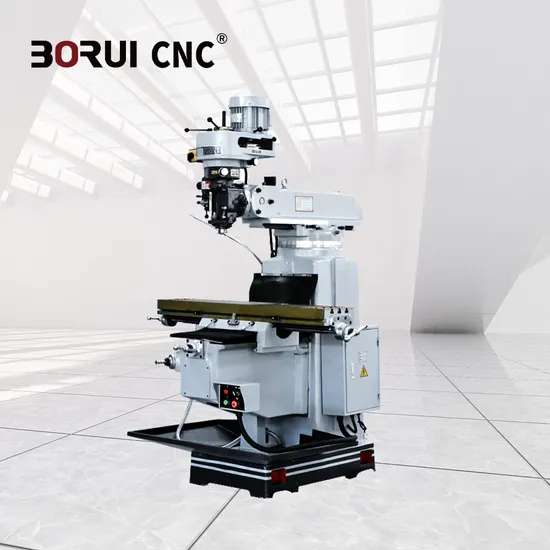

X6325D Durable Economic Head Vertical Turret Type Milling Machine

Product Description

X6325D Durable Economic Head Vertical Turret Type Milling Machine
Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
8.Table automatic feed on X,Y,Z direction by gear driven.

The main specification :

Machine model		4H(X6325D)
Table size		1270*254	1370*254
travel	Longitudinal travel(mm)	780-850	880-980
	Cross travel(mm)	380-420	380-420
	Vertical travel(mm)	350-380	350-380
Spindle	Spindle taper	R8 NT30 NT40
	Spindle travel(mm)	127
	Spindle speed	16
	Spindle feed(mm)	0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008
	Low speed(r/min)	66,110,175,270,550,930,1460,2270
	high speed(r/min)	132,220,540,1100,1860,2920,4540
T-slot	mm)	3X16x65
	Main motor	3HP / 2.2KW 5HP / 3.7KW
	Lifting motor	1.1Kw
Working weight (Kg)		350
Machine Dimensions (mm)		1800X 1780X 2350
Net weight (kg)		1200

Standard Accessories: 1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories: 1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools

---
