CNC Single Column Vertical Turning and Milling Compound Machining Center Lathe Machine

Product Description

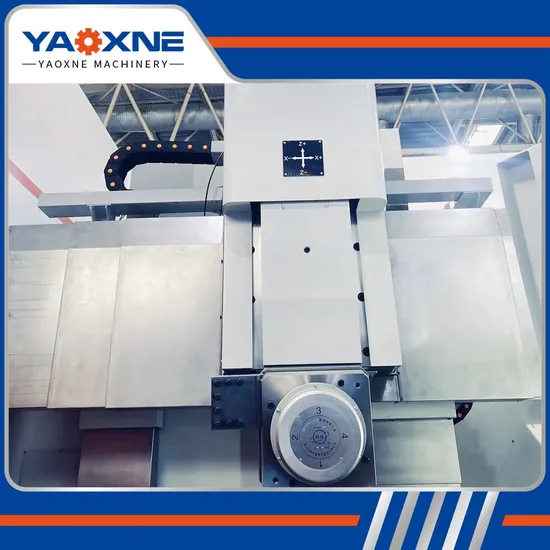

CNC Single Column Vertical Turning and Milling Compound Machining Center VTL1200C+C
Project		Main Parameters
Processing scope	Max.swing diameter	mm	1600
	Max.turning diameter	mm	1600
	Max.height of machining	mm	1200
	X-axis travel	mm	-20~1030
	X-axis grasping tool travel	mm	1300
	Z-axis travel	mm	800
	Cross beam travel	mm	1000
Worktable	Worktable diameter	mm	1400
	Max. Loading weight	T	8t(<100rpm) 5t(At full speed)
Main transmission	Worktable rotation speed steps		2 gear Stepless
	Worktable rotation speed range	rpm	1-300
	Main motor power(Two sets)	KW	31
	Max.torque of worktable	KN·m	12.5
Feed speed	Feed rate steps of the tool holder		Stepless
	Feed rate range of the tool holder	mm/min	0.1~1000
	Fast moving speed of the tool holder	mm/min	8000
	Min. Step forward equivalent	mm	0.001
Vertical tool holder	X/Z axis feed motor torque	N.m	22
	Maximum cutting force of vertical tool holder	KN	20
	Ram size	mm	280×280
	Tool bar section	mm	32
Milling parameter	Worktable rotation speed range	rpm	0.002~2
	Spindle rotation speed range	rpm	10~2400
	Spindle rotation speed steps		2 gear Stepless speed regulation
	Spindle taper hole model		BT50
	Spindle maximum torque	Nm	750
	Spindle motor power	KW	17
Tool magazine	Disc-style tool magazine station		Twelve stations
	Tool shank style		BT50
	Max.tool weight	kg	50
	Max.tool loading weight	kg	480

Dezhou Yaoxin Machinery Manufacturing Co., Ltd. is located in Dezhou City, Shandong Province.It is a professional manufacturers which has development, design, manufacture, sales of CNC deep hole machine tool(CNC deep hole honing machine, CNC deep hole drilling and boring machine, CNC skiving and roller burnishing machine,CNC deep hole gun drilling machine), CNC lathes (vertical lathes, horizontal lathes), cylinder disassemble machine.Through years of research exploration and practice accumulation, our factory has a excellence, continuous innovation of scientific research team and production technology team. The company spirit of "service first, quality first" business philosophy, adhering to the "customer demand-oriented, quality of survival, technology and development" development policy, focus on every detail of user needs, to provide users with economic, reasonable high quality equipment.
The company is a professional manufacturer of CNC vertical lathes. At present, it has the ability of 0.8m--8m high-precision single and double-column CNC vertical lathes and turn-milling and grinding composite machining centers. The company can manufacture and process the workpiece diameter of 27 meters, the workbench bearing the weight of 500 tons of large heavy CNC vertical lathe products. Become the world's professional production of vertical lathe production base of a full range of products.The company continues to conduct in-depth technical exchanges with domestic and foreign advanced vertical car manufacturing enterprises and users, and constantly upgrade technology. Through the struggle and hard work of the company's employees, the company has the basis and conditions to compete with international advanced products. The company's vertical lathe development core: to fully meet the high speed, deep cutting, high precision, environmental protection, easy operation and superior durability and reliability for the development direction. By fully realizing the automation, digitalization, flexibility, information, integration and networking of lathes, we provide high-end production equipment and high-quality services for global outstanding manufacturing enterprises.
We will provide the best quality products at the most reasonable price for our clients, so that domestic and foreign users are satisfied with our before and after sales service.
Our Advantages
A: 1 . High quality with competitive price;
2 . Professional R&D team and six years export experience;
3 . Exported more than 12 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (Skype, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
FAQ
Q: Do you have QC or any safety standards for your machinery?
A: Yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set ).
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
