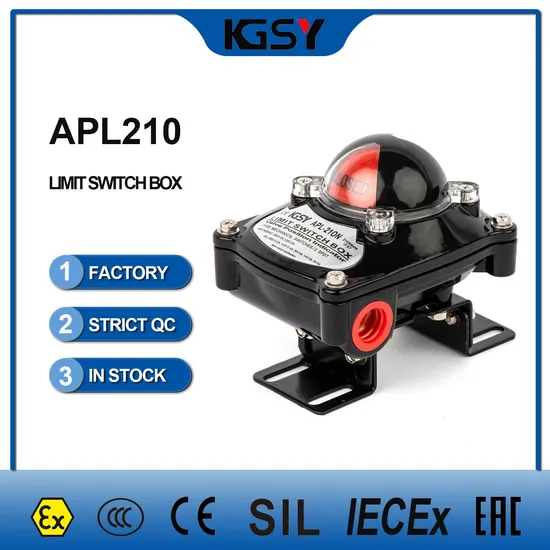

Mechanical Limit Switch Box 2 Spdt for Pneumatic Actuator Drive Valve Position Monitor Apl210 Safe Area

Product Description

KGSY valve indicator is a rotary position device used to confirm the valve position when mounted to a pneumatic actuator. The visual indicator on top of the device can clearly display the valve position for local detection. Mechanical limit switches provide an electrical signal output to PLC's or other devices to confirm both the open and closed valve position.
ApplicationsValve monitors (limit switch boxes) are rotary position devices used for both local and remote indication of valve position. Indicators are typically mounted to the top of standard pneumatic rotary actuators via the standard Namur VDI/VDE-3845 mounting pad.

FeaturesMultiview visual valve position indicatorDual limit switches for remote valve position confirmationStandard Namur VDI/VDE-3845 mountingWeatherproof Type 4, Nema 4X and IP67 constructionPolyester powder coated aluminum housingUniversal mounting bracket includedExproof models are available ( DS300, DS410, DS500 )OperationOutput shaft from the air actuator rotates 90º turning the input shaft of the monitor and moving the visual indicator from closed to open (reverses to close). In addition, limit switches provide a dry contact output signal in both the open and closed position. This signal is used to remotely confirm the valve position.
SPECIFICATION

Material	Aluminum alloy
Enclosure	Standard:Weatherproof Type 4, Nema 4X and IP67 construction
Traval angle	0° ~ 90°
Switches	Mechanical switche (SPDT*2)	5A 250VAC: Ordinary
		16A 125VAC/250VAC: Omron, Honeywell, etc
		0.6A 125VDC: Ordinary,Omron, Honeywell, etc
		10A 30VDC: Ordinary,Omron, Honeywell, etc
	Proximity switch*2	≤150mA 24VDC: Ordinary ≤150mA 30VDC: P&F NBB3, etc ≤150mA 8VDC: Intrinsically safe: Ordinary Intrinsically safe P&F NJ2, etc
Ambient temperature	Standard:-20~80ºC
	Option: -40~80ºC
Cable entry	2XG1/2", NPT1/2", M20, etc.
Terminal strips	Standard: 8 points
	Option: 12 points
Shaft	Standard: S.S. 201
	Option: S.S. 304 or 316
Fastener	Standard: Carbon steel
	Option: S.S. 304 or 316
Indicator lid	Dome lid
	Flat lid
Position Indicator color	2-way: yellow(open)/red(close)
	2-way: green(open)/red(close)
Coating	Black, Red, Yellow, Blue, Silver, etc
Packaging specification	1 pc/box, 50 pcs/ carton

Q & A:
1.What products are produced by your factory?
Answer: We, KGSY is a real factory, we produce all kinds of pneuamtic valve accessories, like air actuator, limit switch box, solednoid valve, air filter, declutch gear operator, electro-pneumatic positioner, adapters, etc.
We also assemble whole set pneuamtic ball valves & butterfly valves.
2.What international approval have you got?
Answer: At present, we have been approved with CCC, CE, IECEx, ATEX, UKCA, EAC certificate.
3.How long is the sample time?
Answer: Usually it will take 7 working days to make a sample.
4.How long is the lead time of a mass order?
Answer: We promise 25 days for each order and nearly 99.3% orders will be finished on schedule.
5.What's your strength?
Answer: We are a real factory, we have our own R&D team and control the quanlity and production time absolutly .
At the same time, we own the advantage of a trading company, which includes efficient comunication and strong ability gathering goods on the primese of specialty.

---
