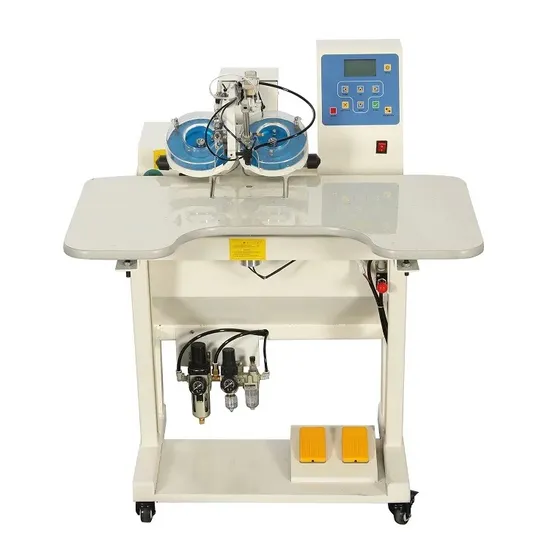

Hot Fix Rhinestone Transfer Machine Automatic Rhinestone Setting Machine Rhinestone Hotfix Machine

Product Description

Hot Fix Rhinestone Transfer Machine Automatic Rhinestone Setting Machine Rhinestone Hotfix Machine
Technical Parameter of Automatic ultrasonic one head two color hot fix rhinestone machine:

Model	KT-RM01	KT-RM02
Working speed	280-350pc/min	280-350pc/min
Voltage	220V/50HZ/1 phase	220V/50HZ/1 phase
Power	200W	200W
Air pressure	0.4-0.5MP	0.4-0.5MP
Welding head	1 head single disc	1 head double disc
Working table size	800*650mm	800*650mm
Size of rhinestones	2.5mm-8mm(ss8#-ss34#)	2.5mm-8mm(ss8#-ss34#)
Dimensions	640*760*1100mm	770*720*1100mm

Working theory:
Through unltrasonic heating principle, picking up rhinestones by Pneumatic control method. At the smae time move the material accordingly by hand after the red light locate, then the machine will fix rhinestones on the material quickly. Working speed can reach 220-260pcs rhinestones per minute, and will not fall off after being cleaned by water.
Characters:
1)Adopting ultrasound, this machine is able to hot fix the rhinestone in purpose materials immediately, such as Denim,Cotton,Jeans,Hemp fabric,Woolen,Synthetic Fiber,Silk,Knitwear,Synthetic Leather,Velvet etc. Especially suitable for the material that can't resist high temperature and easy to deform and discolor.
2) Main components specially imported from other countries, such as two five-way solenoid valve uses from south Korean, two two-way adopt Japan CKD, assuring superior quality and reliable usage.
3) Infrared positioning, precisely hot fix the rhinestone's position and very strong sticking effect
4) Five different size of suction nozzle: 10# 12# 16# 20# 30#
5) Able to work continuously 24 hours, high working efficiency.
Packing: Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion. Delivery: For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us before you place order.

---
