Automatic 3-6mm Welded Steel Wire Mesh Roll & Fence Panel Welding Machine for Construction Production Line

Product Description

Product Description

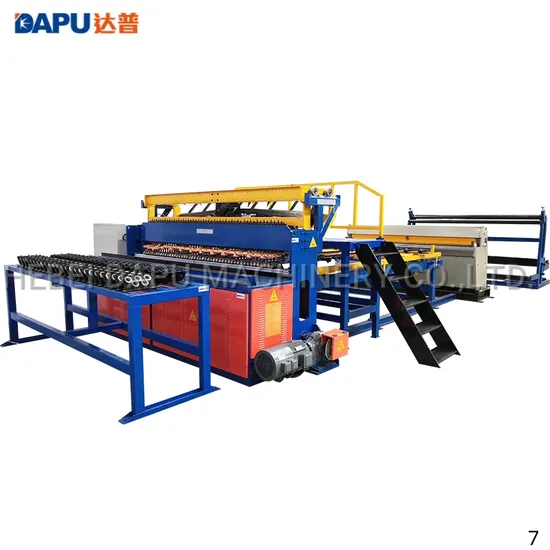

Roll Mesh Welding Machine
Automatic welded wire mesh welding machine makes weld rolled mesh or panel mesh for construction, building, reinforcing and road, etc.
Wire mesh welding machine is mainly used for: welding of construction mesh, football field, railways, highways, bridges, buildings, residential quarters, etc., as well as the welding of shelves and storage cages.
Machine specifications, accessories, etc. can be customized. Please send a message for details and professional sales staff will recommend the appropriate machine configuration based on your needs.
Other Mesh Welding Machine
Welded Wire Mesh Machine 0.4-3mm

Model	DP-DNW-1	DP-DNW-2	DP-DNW-3	DP-DNW-4
Line wire dia(coil)	0.4-0.65mm	0.65-1.2mm,0.8-2mm	1.3-2.5mm/2.8mm	1.5-3mm
Line wire space	6.25mm,12.5mm	12.5mm,25mm,50mm	25,50,75,100,125,150mm	25-150mm
Mesh width	3ft,4ft	3ft,4ft,5ft	4ft,5ft,6ft,7ft,8ft	2m/2.5m
Main motor	2.2kw	2.2kw,4kw,5kw	4kw,5.5kw,7.5kw	5.5kw,7.5kw
Welding transformer	60kva*3/4pcs	60/80kva*3-5pcs	85kva*4-8pcs	150kva*4/5/6/7/8pcs

Chicken Cage Welding Machine(Pneumatic Type) 2-4mm

Model	DP-AW-1200H	DP-AW-1600H	DP-AW-1200H	DP-AW-1600H+
Wire diameter	2-4mm
Max.mesh width	1.2m	1.6m	1.2m	1.6m
Welding points	25pcs	32pcs	49pcs	65pcs
Welding transformer	125kva*3pcs	125kva*4pcs	125kva*5pcs	125kva*6pcs
Max.welding speed	120-150 times/min
Weight	5.2T	6.5T	5.8T	7.2T

Anti Climb Fence Panel Welding Machine 3-6mm

Model	DP-FP-3000A+
Welding speed	Max.120 times/min
Wire diameter	3-6mm
Welding transformer	150kva*11pcs
Weight	5.3T
Machine size	12*3.7*2.3m

Reinforcing Mesh Welding Machine 5-12mm

Model	DP-GW-2500B	DP-GW-3000B
Max.mesh width	2500mm	3000mm
Max.mesh length	6m/12m	6m/12m
Max.welding speed	80-100 times/min	80-100times/min
Welding electrodes	24pcs	30pcs
Welding transformer	150kva*12pcs	150kva*15pcs
Weight	10t	12t

Cable Tray Welding Machine 3-6mm

Model	DP-FP-1000A+
Mesh width	Max.1000mm
Mesh length	Max.3m
Max.welding speed	100-120times/min
Weight	4.2T

FAQ
Q: What's the machine price?
A: We need to know your wanted wire diameter, mesh hole size, and mesh width.
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz, etc.
Q: Can I adjust the mesh size?
A: Yes. The wire diameter can be changed within range, the line wire space and mesh width can be adjusted by moving the welding electrodes, the cross wire space and mesh length can be adjusted by PLC.
Q: Is there any cooling system on your machine?
A: We use water cooling welding electrodes&welding transformers on the machine.
Q: Can I adjust the welding degree?
A: Yes, you can adjust the welding current and welding time. It is controlled by PLC.
Q: What's your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash, etc. It is negotiable.
Q: Where is your factory located?
A: We are located in the industrial zone, Anping County, Hebei Province of China, we have 20-year experience.

---
