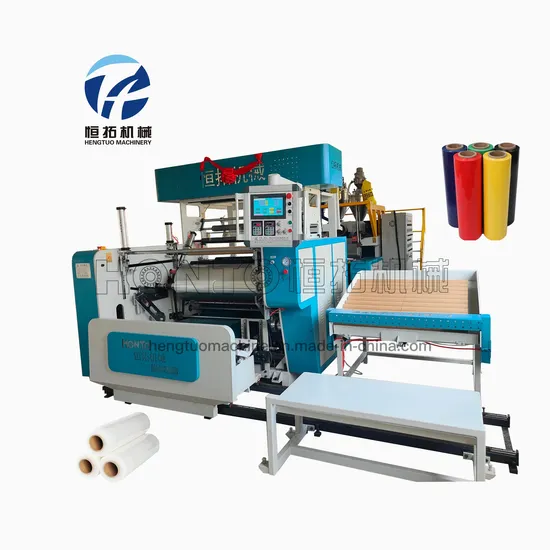

Double Layer Stretch Film Making Machine for Producing Pallet Film Cover Film Cling Film

Product Description

HT-500/1000/1200/1500/1600/2000 Single Extruder ,Double-extruder co-extrusion Double shafts Roll Changing /Intelligent Temperature Control Stretch Film Making Machine
Casting film making machine,
Cling film making machine
USE:
This machine is used for the production of plastic LLDPE stretch film, stretch film, and cling film. The products are widely used in food preservation, commodity packaging, and bulk cargo container pallet packaging. It is a better substitute for heat-shrinkable packaging film in transportation.
What is the details of our Stretch Film Extruding Machine
1. To ensure good plasticization and high quality and high output, special mixing refining design is adopted in the machine's alloy screw which consists of import static state mixer.
2. The bi-directional loop design and helix runner inside cooling steel roller are adopted to stable the temperature on the surface of the roller.
3. The machine is easy to test and adjust the thickness of film, the Slitter could be changed without stopping the machine.
4. The winding system applys air knife online device, which can automatically cut the film in different width quickly.
Main Technical Parameter

Model	HT-1000	HT-1500	HT-2000
Screw diameter	55/75	70/90	70/110
L/D	32:1	32:1	32:1
T-die width	1250mm	1900mm	2400mm
Finished film width	1000mm	1500mm	2000mm
Finished film thickness	0.01-0.03mm	0.01-0.03mm	0.01-0.03mm
Max. extrusion output	120kg/h	180kg/h	260kg/h
Main motor power	22/15kw	37/22kw	75/22kw
Heating power	35kw	55kw	75kw
Air consumption	0.8m3/min	0.8m3/min	0.8m3/min
Water consumption	0.5m3/min	0.7m3/min	0.9m3/min
Total power	65kw	110kw	165kw
Power supply	380/3/4/50(Volt/Ph/line/Hz)	380/3/4/50	380/3/4/50
Overall dimension	7000*2350*2800mm	7500*2850*2800mm	8600*3850*3200mm

HT-1000 Double Layer Stretch Film Machine
Screw diameter:70/55
L/D 32:1
T-die width 1250mm
Finished film width 1000mm(500mmx2 roll)
Motor power 22/15kw
Optional equipment:
1. Hydraulic screen net changer
2.Industrial chiller
3.Vacuuming device
4.Glue pump
5.Flexo printing device
6.Auto paper tube handing system
7.Auto Loader




Finished Film Roll And Application
Semi-automatic /Automatic Stretch Film Rewindng and Slitting Machine
Company Information
RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.
Main products: Three layer co-extrusion stretch film making machine, Double extruder stretch film making machine, single extruder stretch film making machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine etc.
Packaging & Shipping
1. Within 30-60 workding days after receipt of deposit.
2. Stretch film packing, easy damage part put in wooden box.
3. By sea
Our Services
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.

---
