Efficient Turret Milling Machine with CNC Technology for Professionals

Product Description

Product Description

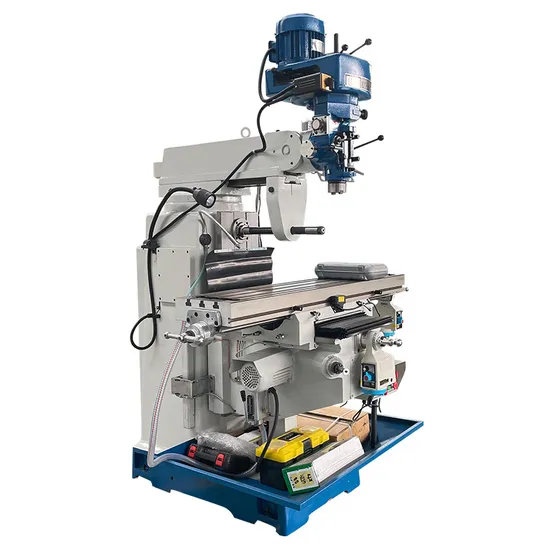

Vertical and Horizontal Turret Milling Machine: Fresadora 4HW 5HW Metal Universal Milling Machine
1. The Turret Milling Machine boasts a smart design and outstanding machining capabilities. It can adeptly handle drilling, boring, and milling of flat, inclined, and slot surfaces. With suitable attachments, it can also manage advanced tasks like milling helical slots, curved surfaces, racks, gears, and splines.2. The Y-axis features a rectangular guide way, ensuring superb rigidity and stability. The guide way on the Radial Milling Machine's saddle is reinforced with TF wear-resistant material for dependable performance.3. Equipped with a high-speed milling head sourced from Taiwan for precision and efficiency.4. The slide ways and table surfaces are carefully hardened for durability and long-lasting accuracy.5. Expertly machined T-slots using specialized tools prevent the slots from extending beyond the table edge, enhancing rigidity and offering an appealing finish. 6. The slide ways have been meticulously hand-scraped to ensure exceptional precision and smooth operation.7. The XYZ axis screws, crafted in Taiwan, guarantee quality and reliability.8. XY screws feature a dual-nut design, simplifying the adjustment of the clearance between screw and nut.9. The XY screw bracket, designed as a single unit, delivers excellent precision and robustness.10. The electrical system is engineered in compliance with CE standards for safety and reliability.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. Constructed from high-grade Meehanite casting, this heavy, solid model ensures durability and strength. 2. Sturdy rectangular slideways for the Y-axis promote stability and precision. 3. All axes are fitted with adjustable dovetail slideways for fine-tuned control. 4. Features both right and left-handed rotation for versatile functionality. 5. High concentricity precision achieved through taper roller bearings, with less than 0.01mm deviation in the spindle sleeve. 5. Automatic spindle sleeve feed for efficient operation. 6. Equipped with a main switch featuring motor protection, a right/left rotation switch, and an emergency-stop button for safety. 7. Cost-effective and retains its value over time.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd. is strategically situated in Zhengzhou, the heart of China. With extensive experience in exporting machinery, we excel in delivering not only stable quality products but also exceptional services.We offer a diverse range of machine tools to the global market, including Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and Machine tool accessories. Our team includes our own engineers, who possess extensive professional experience and training. Our skilled engineers represent the company by not only inspecting goods prior to shipping but also overseeing all stages of the production process. We ensure that every product meets our rigorous quality standards. Our commitment to quality control and customer satisfaction sets us apart in the industry. Through meticulous inspections and continuous monitoring, we guarantee excellence from production to delivery.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
