Servo Motor Driven Paper Cup Making Machine Pneumatic Cup Making Machine

Product Description

Product Description

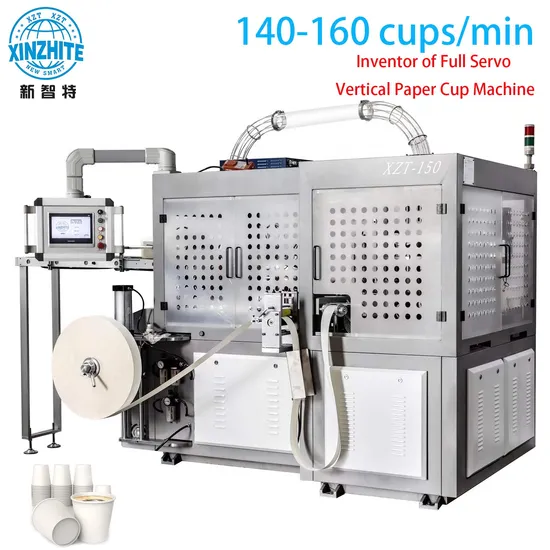

XZT-150 features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market with almost a gear/ chain transmission and cam design paper cup machine. It provides flexibility, speed, affordable capital cost, and low maintenance. Adopted crankshaft and servo motor control instead of traditional cam transmission, no oil lubricant, which solved the negative effects of cam and bearing wearing and impacting while the machine running at high speed. This breaks through the traditional paper cup machine must use a cam to control the lifting and time. XZT-150 changed the working procedure of bottom sealing. First Leister hot air preheating the cup body, then the cup bottom paper coming. This procedure makes fast sealing while the hot and cold paper touched each other. Then the second Leister hot air heats the bottom to go next knurling process. It makes the paper cup bottom seal more firmly while the machine running at high speed. Traditional paper cup machines do the double bottom heating after the bottom paper comes to the cup body. XZT-150 new design makes the bottom knurling much better.
Product Parameters

Model	XZT-150 Paper Cup Machine
Cup size	4-16oz
Material	170-380GSM single or double PE/ PLA coated paper
Speed	140-160pcs/min
Power Supply	3phase 380V 50Hz, 34KW (running consumption is 14KW)
Air Supply	0.6Mpa (running consumption 0.5Nm3/min)
Dimension(mm)	2460Lx1620Wx1780H
Weight	3000kgs

Detailed Photos

FAQ
Pre-sales issues _____
Q1- Is your company a factory or a trading company?
A1- We are a factory with more than 20 years of technical experience.
Q2- Where is your factory? How can I visit your company?
A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.
Q3- What is the suitable material for your machines? What size of cup/bowl you can make?
A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines
We can make paper cups/bowls from 4oz-57oz.
Q4-What kind of machines do you produce?
A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine.
Q5- What certificates of machine do you have?
A5- CE, and more than 10 pieces of Patent of the machine.
Q6- What exhibition have you participated in?
A6- China South Print/ 2021 China package and container fair in shanghai, etc. If conditions permit, we will go for more exhibitions at home and abroad.
Q7- Do you have an agent abroad?
A7- Yes, now we have an agent in Turkey. If you want to become our agent please contact us.
Q8- What information should I let you know if I want to get a quotation?
A8- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.

Problems in sale _____
Q1- About payment term
A1- 30%T/T in advance, the rest paid before shipment.

Q2- Order tracking
A2- After the customer places an order,our company will send professional personnel to track the order and regularly report the production progress to the customer. after sales question _____
Q1- Warranty period of the product
A1- We offer one year warranty. And we also can dispatch engineers if conditions permit. Online instruction is also available.
Q2- About machine maintenance
A2-We will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.
Packaging & Shipping

EXHIBITION

Choose our XZT-150, save space, save salary, and create more value.

---
