High Quality Automatic Cup Tilting Thermoforming Machine/Disposable Cup Making Machine/Automatic Thermoforming Machine/PP Mineral Water Cup Making Machine

Product Description

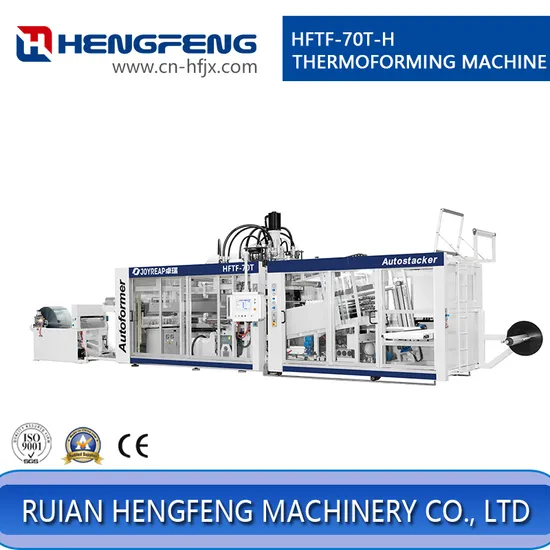

HFTF-70T-H High Performance and Good Quality automatic Cup Tilting Thermoforming Machine
Applicantion:
HFTF-70T Plastic cup forming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system
Rapid mould changing device
Mould automatic memory system
PLC design with easy operation.
Main Specification

1- Max. Forming Area	680× 320mm
2- Max. Forming Depth	180mm
4- Sheet Thickness	0.35-2.5mm
5- Max. Roller Diameter	Φ 1200mm
6- Air Pressure	0.7-0.85mpa
7- Water Consumption	50L/min
8- Air Consumption	3000L/min
9- Max.Speed	35Cycles/min
10- Power (Three Phase Four Wire)	3× 380V+NP+PE. 50HZ
11- Heating Power	130kw
12- Main Motor Power	11kw
13- Feeding Motor Power	4.4kw
14- Scrap Rewinding Motor Power	0.55kw
15- Machine Weight	10000kgs
16- Dimension	11000× 3650× 3500mm

WELLE CNC Machine
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.

---
