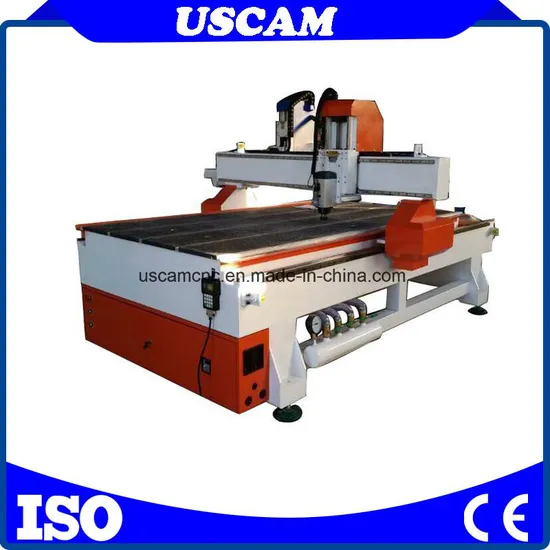

New USB Wood CNC Router Engraving Drilling Milling Tools Machine

Product Description

Features of CNC Router Cutting Engraving Machine
1. Whole machine is welded with thick square seamless steel structure, not easy to be deformed.
2. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission, fast
working, high
efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.
3. High power spindles have constant power, low noises and super strong cutting force, which improve
workingefficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis,
make sure machine running well.
7. Independent control box make control easier.
Parts of CNC Router You Can Choose

1. Spindle	Italy HSD Air Cooling Spindle or Water Cooling Spindle Top brand of the world. Spindle speed: 0-24000RPM
2. Inverter	Fulling or Delta Inverter Ioutput 150% of rated torque at zero speed, can have "point to point" and relative distance control functions for position
3. Motor& Drive	Stepper or Servo Motor and Driver Stepper and Servo motor driver can run with smaller noise, lower heating, smoother movement and havebetterperformances at higher speed
4.Control system	DSP Control System (NC-Studio, Mach3 optional) DSP controller for cnc router,USB connect,can be use without computer.
5.Transmission	Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN Linear Rail HG series linear guideway can achieve a long life with highly accurate and smooth linear motion.
6.Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clampthe workpiece in place.

Parts of cnc router machine
Technology Parmeter

Description	Parameter :USM1325-ATC
X,Y,Z working area	1300x2500x200mm
X,Y,Z Traveling positioning accuracy	±0.01
X,Y,Z Repositioning positioning accuracy	±0.01mm
Lathe bed frame	Steel square tubes,Lathe bed steel pipe thickness 8mm
X,Y Structure	Rack drive and Taiwan HIWIN guide
Z Structure	Taiwan TBI Ball screw and Taiwan HIWIN guide
Drive motors	Japan Yaskawa Servo motors
Table surface	vacuum table and vacuum pump
Max power comsumption	(without spindle)2.0KW
Max rapid travel rate	100000mm/min
Max working speed	80000mm/min
Spindle power (Linear or Disc)	Automatic tool change spindle Italy HSD 9kw
Spindle speed	0-24000RPM
Spindle inverter	Taiwan Delta inverter
Working voltage	AC380V/50/60Hz,3PH
Command language	G Code
Operatiing system	Taiwan Syntec system
Collet	ISO30 or HSK F63 (3.175/4/6/12.7mm. Optional )
X,Y Resolution	<0.02mm
Running environment temperature	0-45 centigrade
Relative humidity	30%-75%
G.W.	Approx. 2000kg
Delivery time and payment	7-15 working days days after get 30% payment by T/T

Sample of cnc router cutting engraving machine
After-sale Service 1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free
of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
Packing and shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.
Welcome To Our Factory
If you have any questions, please feel free to contact with us

---
