Germany Traffic Alko Axles Hydraulic Electric Trailer Cherry Picker Towable Spider Articulated Boom Lift

Product Description

200kg 300kg capacity one person trailed towable aerial man lifts
GERMANY ALKO AXLES MEET EU TRAFFIC STANDARD ROAD+ALKO BRAKES SYSTEM

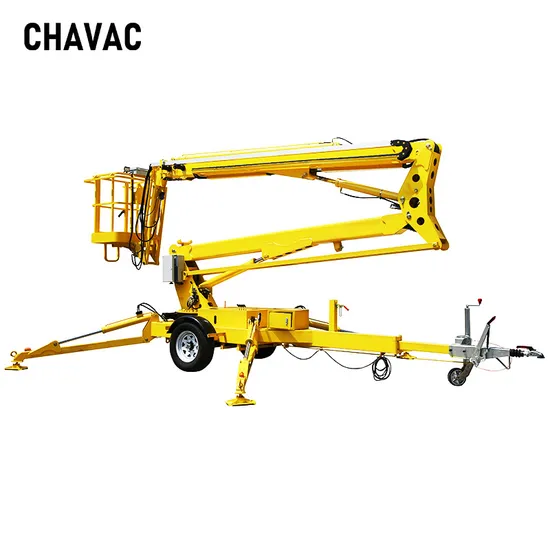

Introduction: Trailing Cherry Picker articulated boom lfit is one of the most ideal aerial lift platforms for both indoors and outdoors maintenance work. It can rotate 360degree in the air and the platform height is from 6m to 16m. It can be used in a tight space because of its company structure. It is very easy and convenient to be trailed by car or tractor anywhere. It is widely used in neighborhood units, road light maintenance, factories high place maintenance, construction site, and so on.
Towable Boom Lift is famous for its wide working range. Firstly, it can be towed by tractor, truck or car for long-distance. Secondly, because of its bending arm, the towable boom lift can reach not only vertical high places but also horizontal distance. Thirdly, the towable boom lift is equipped with an automatic turntable plate which can rotate the arm 360°. All these characteristics make sure the wide working range.
Four high-strength hydraulic automatic support legs will jack up the whole body of the towable boom lift when working, which will guarantee the great stability of the whole machine. Considering the four high-strength support legs, it has a nickname called "Spider Boom Lift".
There are three control panels on the towable boom lift:
Four support legs control panels
Lifting and Rotating control panel on the body
Lifting and rotating controls on the platform
The operator can control the towable boom lift no matter he is on the ground rather than on the platform.
Towable Boom Lift has three kinds of power supply for choice:
Diesel power with diesel engine
Battery power with an electric motor
Both diesel power and battery power
It depends on customers' preferences.
Configurations:
Retractor
Support Wheel
Four Hydraulic Support Legs
Support Legs Control Handle
Lifting Control Panel on the Body
Diesel Engine
Electric Motor
Hydraulic Pump Station
Hydraulic Cylinder
Basket
Lifting Control Panel on the Busket
Siren
Product Features:
1.360degrees rotation of the arm
2.Sealing parts use the JapanNOK brand, guarantee that the products run 300,000 times without leakage or damage
3.Cylinder outlet is equipped with automatic shut-off valve
4.Equipped with emergency dropping device
5.The machine has two sets of control system, one on the machine, one on the floor, easy and convenient to operate, safe and flexible
6.The rotating parts are equipped with lubricated bearing and grease cup,flexible rotation without noise
7.Equipped with sliding track rollers, reducing the rocking and vibration and ensures the smooth up-down

Model Type	TBL-10A	TBL-12A	TBL-14A +Telescopic	TBL-16A +Telescopic	TBL-18A +Telescopic	TBL-20A +Telescopic
Lifting height	10M	12M	14M	16M	18M	20M
Working height	12M	14M	16M	18M	20M	22M
Load capacity	200KG
Platform size	0.9*0.7M
Working radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	1855KG	2050KG	2500KG	2800KG	2800KG	2800KG
Overall Size( L*W*H)	5.2*1.7*2.1M	6.2*1.7*2.1M	5.6*1.7*2.1M	5.7*1.7*2.2M	6.5*1.8*2.3M	5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal)	3.0 M	3.6 M	3.6 M	3.9 M	3.9 M	3.9 M
Supporting Legs Stride Distance (Vertical)	4.7 M	4.7 M	4.7 M	4.9 M	4.9 M	4.9 M
Wind Resistance Level	<=5
20'/40' Container Loading Quantity	20'/1set	20'/1set	20'/1set	20'/1set	20'/1set	20'/1set
	40'/3sets	40'/2sets	40'/2sets	40'/2sets	40'/2sets	40'/2sets

Optional Power:
1.Diesel
2.Battery engine-Europe Bucher
3.Gasoline engine-Japa Honda
4. AC Electricty power
5. Hybrid power,optional dual power

Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform
Trailed Boom Lift Detailed Pictures:
Certificate:ISO and CE,SGS,ROHS,ETC.
Our Service: 1.We can design the customerized towable boom lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the towable boom lift break down to help you repair.
6.Parts of towable boom lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The towable boom lift adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the towable boom lift.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

---
