| No. | TECHNICAL SPECIFICATIONS | P/N: PCB-HD022 |

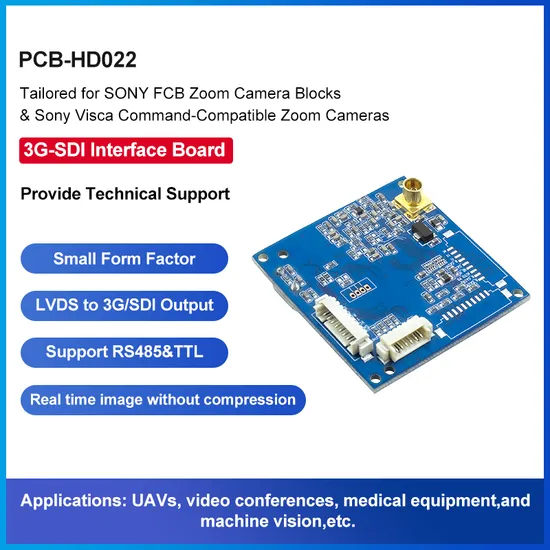

| 1 | Overview | Designed for SONY FCB HD zoom camera blocks,the PCB-HD022 features mini MCX RF interface.Connected to the interface board through an LVDS cable,the PCB-HD022 can output 3G-SDI signals and automatically identify HD signal. Supports 485 controls and an OSD menu with an external button to set up zoom,focus,gain,white balance,and other functions. Automatic recognition of the PELCO-D/P power-off memory,preset position,automatic touring functions.Work with most digital zoom camera blocks that are compatible with the SONY VISCA protocol. |
| 2 | Digital video output | 3G-SDI-HD-SDI |
| 3 | Connector | MCX(or SMA or no connector in option) |
| 4 | Video output resolution | up to 1080p60 |
| 5 | Analog video output formats | NO |
| 6 | Video format configuration | Button switches and/or ViSCA software via Sony FCB control software |
| 7 | Camera control settings | VISCA-TTL232; RS485,(order seperated: button switch in external board in option) |
| 8 | Power supply | DC 9-12V,1W |
| 9 | Operating temperature | .-20°C to 60°C |
| 10 | Storage temperature | .-20°C to 60°C |
| 11 | Applications | UAVs, video conferences,medical equipment,and image detection equipment, machine vision, CCTV, etc. |
| 12 | Dimensions(mm) | 42(H)*42(W)*5(D) |
| 13 | Weight (g) | 6.5 |
