High-Performance Portable Trailer Diesel Mini Concrete Pump with Mixer Machine for Sale

Product Description

Product Description
Product Description

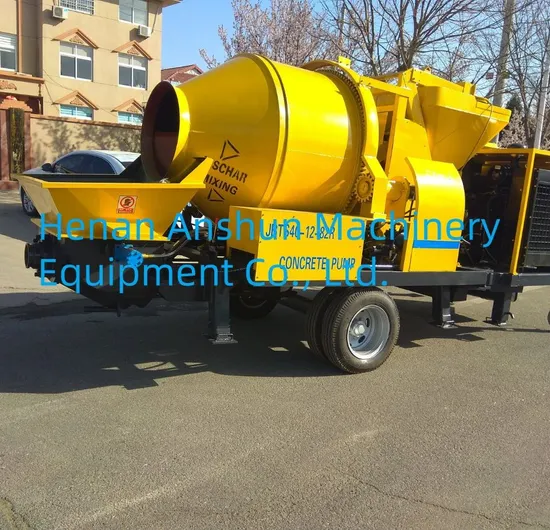

A concrete mixer pump is a construction equipment that combines concrete mixing and pumping functions. It is widely used in construction engineering, bridge construction, tunnel engineering and rural infrastructure construction. The equipment integrates the functions of a concrete mixer and a concrete pump. It can directly mix concrete on site and transport it to a designated location through a high-pressure delivery pipeline, greatly improving construction efficiency and reducing labor costs.
Product Parameters
Detailed configuration

main oil pump	Korea kawasaki
Main oil pump capacity (ml/r)	112
Theoretical displacement (cubic) high/low	40
diesel engine	82 kw weichai deutz 82
Main cylinder diameter/stroke(mm)	Φ100/1000
Concrete cylinder diameter/stroke(mm)	Φ180/1000
Hydraulic hose	parker
seal	United States parker
Electric control system
PLC unit PLC	Japan omron
remote control	wireless remote control
Valve group	shanghai, China
Pumping distance horizontal/vertical(m)	level300/vertical90 300/90 (m)
Lubrication system	Full automatic hydraulic pressure
Outlet diameter (mm)	Φ150

Main technical data

Items			Units	Parameters
				JBS40
Whole performance of machine		Max. theo. concrete output	m3/h	40
		Max.concrete throughput	m3/h	15
		Mixer rated feed capacity	m3	0.65
		Mixer rated discharge capacity	m3	0.45
		Max.concrete pumping pressure	MPa	10
		Distribution valve type		SS Valve
		Concrete cylinder diameter×stroke ×	mm	Ф180×1000
		Hopper capacity	L	700
		Outlet diameter	mm	Ф150
Power system		Diesel engine model		Weichai deutz
		Electrical engineering power	kW	82
		Rotate speed	r/min	2200
		Winding motor power	kw	Hydraulic motor
		Stir the motorPower	kw
		Water pump motor powe	kw
Hydraulic system		Circuit type		Open circuit
		Pumping system pressure	MPa	32
		Mixing system pressure	MPa	6-8
		Capacity of oil tank	L	350
	The biggest transportation is away from vertically (/Level) /		m	90/300
Other parameters		Max. aggregate diameter	mm	Scree: 40
			mm	60mm
		Inside diameter of delivering pipe	mm	Ф125
		Dimensions:length×width×height :××	mm	6000x2300x3150
		Total weight	kg	5800

Performance Features
Performance Features
1.One machine for two purposes: It combines mixing and pumping in one, reduces equipment investment and improves construction efficiency.
2.Strong adaptability: It can be applied to various working conditions, such as rural construction, building construction, road construction, etc.
3.High degree of automation: It is easy to operate and equipped with a remote control system to reduce manual intervention and improve safety.
4.Energy saving and environmental protection: It adopts efficient power system and hydraulic technology to reduce energy consumption and pollution.
5.Efficient and stable: It adopts advanced S-valve reversing technology and hydraulic system to ensure stable concrete delivery.


Product Application
Product Application
1.Rural and urban residential construction: suitable for small projects such as new rural construction and building construction.
2.Road, bridge and tunnel construction: can be operated in narrow or complex terrain to improve construction efficiency.
3.Water conservancy projects: used in dams, flood control projects and other scenes to achieve efficient concrete transportation.
Mixer trailer pumps have become one of the indispensable important equipment in modern construction due to their high efficiency, convenience and strong adaptability.
Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
Packaging & Shipping

Certifications
FAQ
Support:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
