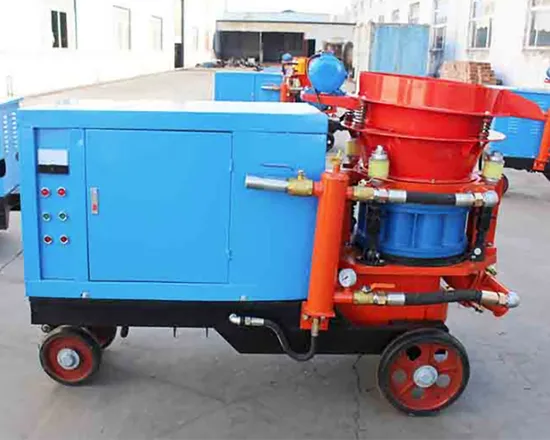

5m3/H Wet Cement Mortar Spraying Machine Concrete Plaster Sprayer Wet Shotcrete Machine

Product Description

Product Description
HSP series Gunite Machine for Construction uses a whole cup type elastic material, the elastic sticky discharges elbow, the overall clean boards. Rotor material cup and bend the material has a self-cleaning effect, non-adhesive, non-blocking, no cleaning, dust concentration 20mg/m3, the average rebound rate 15%, has the feature of simple structure, reliable, high efficiency, easy assembly
and disassembly the nozzle discharge uniformity and long life of wearing parts and so on.Which is one of leading technology concrete injection machine in the domestic.
Features of Wet Shotcrete machine:
1. HSP type concrete wet spraying machine is a type of alkali spraying machine mainly used for wet spraying of concrete 2. Wet spraying can make the mixture evenly mixed; 3. The water cement ratio can be accurately controlled, which is conducive to the hydration of water and cement, resulting in small dust and small rebound; 4. The concrete has good homogeneity and high strength, 5. The machine has a reasonable structure, stable performance, convenient operation and maintenance, and is economical and practical.
Product Parameters

HSP model (wet-type) shotcrete machine
Model (Wet-type spraying machine)	HSP-5	HSP-7	HSP-9
Capacity (m3/h)	4-5	5-7	6-9
Max. Conveying Distance (Horizontal,Vertical m)	30,20	30,20	30,20
Feeding pipe inner diameters(mm)	51	51/64	51/64
Max. Aggregate Diameters (mm)	15	15	15
Working pressure (MPa)	0.3-0.6	0.4-0.6	0.4-0.6
Air consumption (m3/min)	10-15	10-15	10-15
Rotor Diameter(mm)	438	480(160)	480(175)
Springback (Average)	≤10%	≤10%	≤10%
Liguid accelerator content	0.3-0.7%	0.3-0.7%	0.3-0.7%
Motor Model	Y132M-6-5.5KW	Y160M-6-7.5KW	Y160M-6-7.5KW
Motor Power	0.37KW	0.37KW	0.37KW
The accelerator metering pump	Air operated	Air operated	Air operated
Voltage (V)	380,660,etc	380,660,etc	380,660,etc
Overall size (mm)	1280*700*1280	2000*800*1300	2000*800*1300
Overall weight (kg)	700	800	900

Detailed Photos
Different types of construction machinery:
Packaging & Shipping
FAQ
Q1: Are you factory or trade company?A1: We are factory. And we have ourselves trading company.Q2: Warranty terms of your machine?A2: One year warranty for the machine and technical support according to your needs.Q3: Will you provide some spare parts of the machines? A3: Yes, of course.Q4: What about the voltage of products??Can they be customized?A4: Yes, of course. The voltage can be customized according to your equirement.Q5: How long will you take to arrange production?A5: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 20-30 days.Q6: Can you accept OEM orders?A6: Yes, with professional design team, OEM orders are highly welcome.Q7 Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.

---
