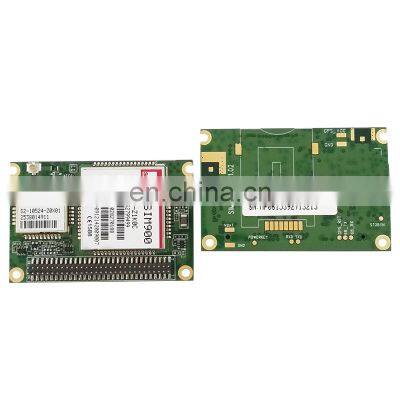

SIMCOM SIM900+SIM68 Quad-band GSM GPRS + GPS GNSS Module

Product Description

Product Description
DescriptionSIMCOM SIM900+SIM68 Quad-band GSM GPRS + GPS GNSS Module• SIM968 module is a compact Quad-Band GSM/GPRS enable module base on PNX4851 platform which is also equipped with GNSS technology for satellite navigation.• The complete design in a SMT type makes it easy to integrate GSM/GPRS & GNSS as an all-in-one solution. General features•Quad-Band GSM 850/900/18001900MHz•GPRS multi-slot class 10•GPRS mobile station class B•Compliant to GSM phase 2/2+-Class 4 (2 W @ 850/900 MHz)-Class 1 (1 W @ 1800/1900MHz)•Control via AT commands (3GPP TS 27.007 and SIMCom enhanced AT Commands)•SIM application toolkit•Supply voltage range:-VBAT: 3.2 ~ 4.8 -V-GPS: 2.8 ~ 4.3V-VCHG: 5V•Low power consumption•Dimensions: 30*30*3.0mm•Weight: 5.3g•Operation temperature:-40°C to +85 °C Specifications for SMS via GSM / GPRS•Point-to-point MO and MT•SMS cell broadcast•Text and PDU mode Specifications for audio•Tricodec-Half rate (HR)-Full rate (FR)-Enhanced Full rate (EFR)•Hands-free operation•Echo cancellation Specifications for data transfer•GPRS class 8/10: max. 85.6 kbps (downlink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•Integrated TCP/IP stack Specifications for CSD data•CSD up to 14.4 kbps•USSD•Non transparent mode Compatibility•AT cellular command interface Specification for GNSS•Support GPS/GLONASS/Galileo/QZSS•Support EASYTM self-generated orbit prediction•Support EPOTM orbit prediction•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)•Support Jamming Removing•Integrated Low-noise amplifier•Receiver type33tracking/99 acquisition-channel GNSS receiver•Max. update rate: 10HzSensitivity Tracking: -167 dBm Reacquisition: -160 dBm Cold starts: -148 dBm •Time-To-First-FixCold start: 28s Warm start: 26sHot start: <1sEPO Assist: 13s(CTTFF) •AccuracyAutomatic Position3: <2.5m CEP Speed: 0.1m/s Interfaces• 80-pad with SMT type•one Interface for external SIM card :3V/ 1.8V•two analog audio interfaces•SPI interface•RTC backup•a serial interface and a debug interface for GSM/GPRS• two serial interfaces for GNSS•charge inputWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
