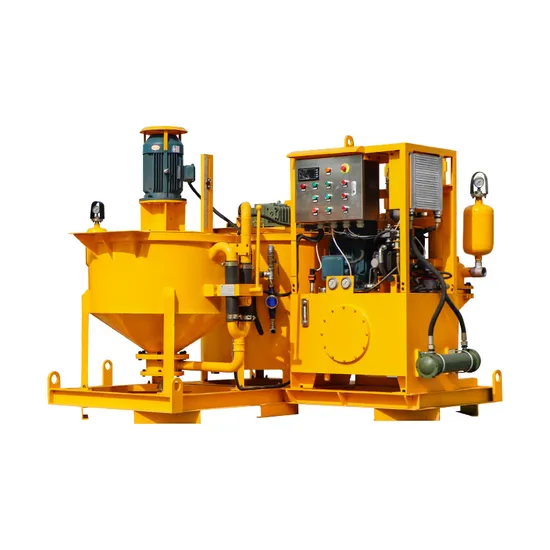

LGP400/700/80dpl-E Grout Mixing Plants for The Pipe Jacking Machine

Product Description

LGP400/700/80DPL-E Grout mixing plants for the pipe jacking machine Description of grout plant:
LGP400/700/80DPL-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. What's more, the double-cylinder pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Features of grout plant:
1. High-speed colloidal grout mixer
2. With the liquid level of the mixer tank
3. Double plunger pump
4. Vertical type pump with compact size
5. Hydraulic drive (safely releasing pressure when pumping block)
6. Hydraulic system with high temperature warning and protection system
7. Pressure holding system
8. Low flow pressure surge system
9. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)
10. Up to 5mm particle size

Technical data of grout plant:

Description	Data
Grout Station model	LGP400/700/80DPL-E
Dimensions	2350*2100*1830mm
Weight	1530kg
Mixer
Capacity	400L
Recycling discharge	1100L/min
Suitable water/cement ratio	≥0.5:1
Motor power	7.5Kw
Rated Rev.	1450rpm
Agitator
Capacity	700L
Motor model	1.5Kw
Rated Rev.	36rpm
Pump(vertical compact hydraulic grout pump)
Output/pressure	Low pressure: 0-80L/min, 0-25bar High pressure: 0-58L/min, 0-40bar
Power	11Kw
We could also customize according to your demands.

Detailed Images:


Application:
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
Company Information:

We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.

---
