500L Chocolate Tank for Chocolate Storage with Electricity Heating

Product Description

Chocolate Tank/Chocolate Storage Tank/Chocolate Holding Tank
Product Description
a. The holding tank is to store the chocolate mass after refining in chocolate conche in constant temperature; It is with automatic temperature control system.
b. It has functionsof temperature decrease and increase, elevation of temperature, heat preservation, may carry on to the chocolate pulp without stirring, but also has the degasification, the air sweetening, to dehydrate as well as to prevent functions and so on pulp fat separation.
C. The holding tank also has function of melting chocolate big blocks.
Technical Specifications

Model	IHD30	IHD50	IHD100	IHD200	IHD300	IHD500
Capacity (L)	30	50	100	200	300	500
Stirring Speed (rpm)	23.5	23.5	23.5	23.5	23.5	23.5
Main Power (KW)	0.25	0.25	0.55	0.75	0.75	1.5
Heating Power (KW)	2	2	2	4	4	4
Weight (KGS)	100	120	150	200	280	500
Outside Dimensions (mm)	Φ500×800	Φ700×850	Φ650×950	Φ800×1150	Φ900×1250	Φ1000×1380

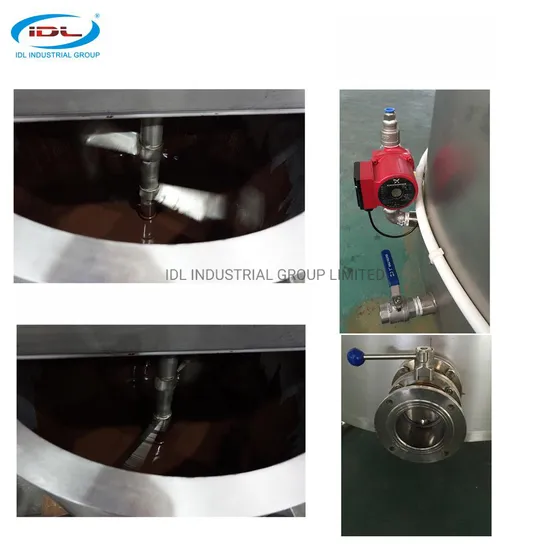

Product Detailed Photos
Process Flow Chart

Company Profile
After Sales Service
We can provide door to door services and turnkey projects for customers from all over the world.
Supply of spare parts for whole product life time. 7*24 hours online technical support. Free training for operation & maintenance of equipment. On site installation & commissioning. Welcome to our factory, IDL will be your ideal partner.

---
