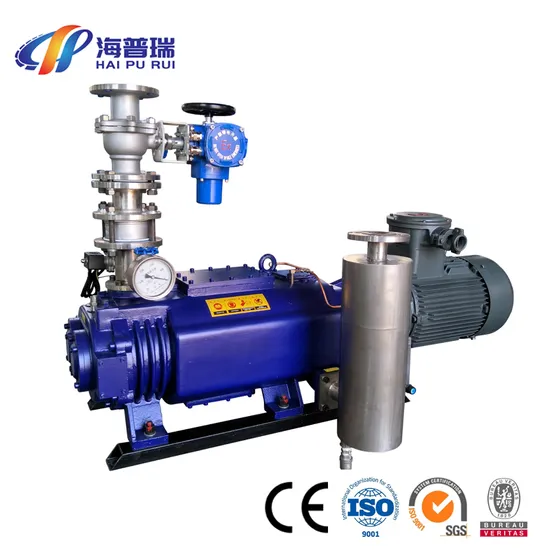

Dry Screw Vacuum Pump Two Rotors for Chemical, Pharmaceutical, Electrical Lithium Industry

Product Description

Product Description

Roots vacuum pump is a kind of positive displacement vacuum pump, also known as mechanical booster pump, is one of the main pumping equipment to obtain medium and high vacuum, is the use of two figure-8 rotors in the pump body driven by the gear for reverse synchronous high-speed rotation, to complete the suction and exhaust, as shown in the figure.

Main Feature

· Large pumping rate over a wide pressure range. Like an "accelerator" acting on the front pump to increase its pumping speed and limit vacuum. · There is no friction in the running parts of the pump, no need for lubrication, no oil in the pump chamber, and clean vacuum can be obtained.
· The gas in the pump chamber flows vertically, which is conducive to the removal of dust and condensate in the pumped gas. · Fully symmetrical and finely balanced rotors operate smoothly and reliably.
· Prevent oil leakage and emulsification -- Use of shaft extension mechanical seal and composite seal structure design. · Low vibration and noise.
According to customer demand, other materials can be made

Attention

Product Parameter

Model	ZJ-70/ ZJB-70	ZJ-150/ ZJB-150	ZJ-300/ ZJB-300	ZJ-600/ ZJB-600	ZJ-1200/ ZJB-1200	ZJ-2500	ZJ-5000
Ultimate pressure Pa	0.05
Ultimate total pressure Pa	0.5
FLow L/S	70	150	300	600	1200	2500	5000
Zero flow compression ratio Pa	30	30	30	35	35	40	40
Maximum allowable pressure difference Pa	8000	6000	5000	4000/5000	3000/4000	3000/4000	3000
Air inlet diameter mm	80	100	150	200	250	300	400
Air outlet diameter mm	5	80	100	150	200	250	400
Motor power Kw	1.5	3	4	5.5/7.5	11/15	18.5/22	37/45
Pump rated speed r/min	1450/2850	2850	1450/2900	2900	1450/2900	1450/2900	1450
Noise dB(A)	73	75	78	80	85	87	87
Maximum allowable pressure difference temperature rise ºC	50	50	52	55	55	55	55
Quantity of oil L	≤1.5	≤2	≤2.5	≤4.5	≤7	≤13	≤18

Attention

Application Area

petroleum Chemical machine

Mine Medical Food

Company Introdution

Shenyang Haipurui Vacuum Technology Co., Ltd. is a high-tech enterprise, specialized in special new enterprises, the company is committed to vacuum pump, vacuum complete equipment R & D, design, manufacturing, sales and service, own land of 20 acres, plant 7,000m, has many years engaged in the vacuum industry experienced technical personnel, according to the cutting-edge vacuum technology and the actual needs of users, Continuously develop and improve product design and application to provide optimal solutions for vacuum applications in various industries. Our company has passed ISO9001 quality management system certification, successively obtained a number of patents and software Copyrights, gather force breakthrough, improve the level of products and services.
The company's products mainly have two categories:
One is vacuum obtaining equipment that vacuum pump, 2BV, 2BE, SK, 2SK series liquid ring vacuum pump and compression machine, SY, 2SY series liquid ring compressor, ZJ series Roots vacuum pump, LGB series screw vacuum pump, XD, 2XZ, 2X series rotary vane vacuum pump, WLW reciprocating vacuum pump.

Use site

Export Packing

Exhibition

FAQ
1.Are you a factory or trading company?We are a factory and we have professional team of workers,Designers and inspectors.2.Do you accept custom?Of course.We have professional teams who make your designs,photos,imagines and OEM orders into real production.3.What's your shipping terms?If you need to ship by air,we can use DHL,UPS,FedEx,TNT or EMS.If you need to ship by sea,we have many good forwarders to work with,they can provide the best price for you.
4.Whats your payment terms?
Until now , we can accept TT.LC.
5.What information do you need to offer a quotation?
Pump Capacity: m³/h or L/S
Voltage: V
Frequency: Hz

---
