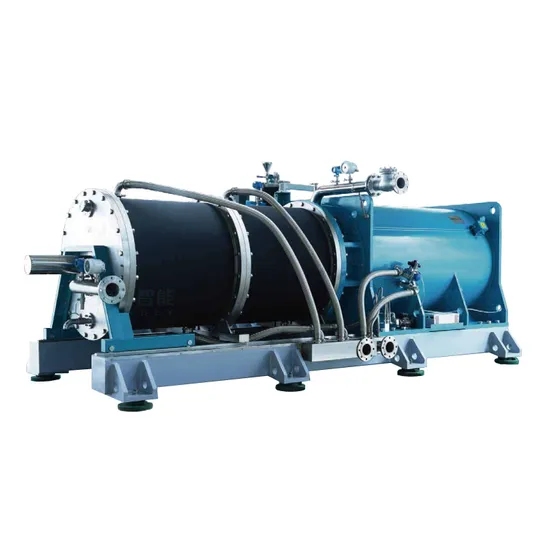

Nano Metal Bead Mill, Nano Bead Grinding Mill, Efficient and Mass Volume

Product Description

Performance Advantage 01
Using permanent magnet motors, the traditional belt pulley transmission design has been eliminated, reducing kinetic energy loss and saving about 10% energy compared to traditional asynchronous motors. According to demand, 380V and 690V high-voltage standard motors can be customized, with lower energy consumption and maintenance costs under the same output power.
02
Efficiency and quality upgrades, stable production performance, and excellent performance.
Adopting an efficient rod pin grinding structure, the sieve has a large flow area, high grinding efficiency, and is easy to operate and process control. It can carry out continuous circulation production with high flow rate, increasing production efficiency by 30-50%.
Fineness: 20nm - 100nm
Zirconia Bead Dia.: 0.05-0.6mm
Constant temperature controlled grinding ensures material stability.
Technical Parameter

Model	Chamber	Rev.	Motor Power	Bead Dia.	Bead Rate	Batch Capacity
PML100	100L	900 - 1650rpm	115KW	0.2 - 2.0mm	70 - 85%	500 - 4000L
PML150	140L	900 - 1650rpm	130KW	0.2 - 2.0mm	70 - 85%	800 - 6000L
PML300	300L	900 - 1650rpm	225KW	0.2 - 2.0mm	70 - 85%	1000 - 8000L
PML00	400L	900 - 1650rpm	320KW	0.2 - 2.0mm	70 - 85%	2000 - 10000L
PML500	500L	900 - 1650rpm	370KW	0.2 - 2.0mm	70 - 85%	3000 - 12000L
PML700	700L	900 - 1650rpm	460KW	0.2 - 2.0mm	70 - 85%	3000 - 18000L
PML1000	1000L	550 - 1300rpm	580KW	0.2 - 2.0mm	70 - 85%	5000 - 30000L
PML1200	1200L	550 - 1300rpm	670KW	0.2 - 2.0mm	70 - 85%	8000 - 40000L

Application
Nano metal materials, Ceramic materials, Conductive materials, Nano new materials, MLCC, Alumina etc.
