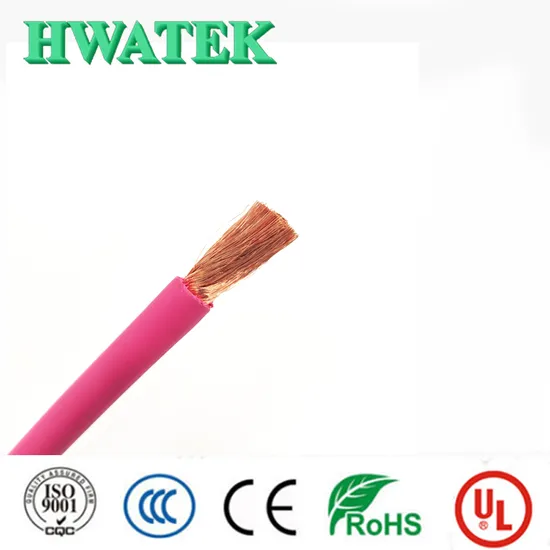

PVC Insulated Single Core Flexible PVC Bare Copper Electric Electrical Wire Cable

Product Description

Product Parameters

SPECIFICATION		CABLE NAME		AWM1015
		CABLE SPEC		6AWG(513/0.20mm)
		RoHS Compliant
ITEM		6AWG(513/0.20mm)
CONDUCTOR	Material	Bare copper stranded
	Size	513/0.20mm
	O.D.(Ref)	5.40mm
INSULATION	Material	PVC
	Min.average thickness	1.52mm
	Min.thickness at any point	1.37mm
	O.D.	8.80±0.40mm
ELECTRICAL CHARACTERISTICS		PHYSICAL PROPERTIES
Rated voltage:600V		Tensile strength:			≥10.3MPa
Rated temperature:-40-105ºC		Elongation:			≥100%
Max. DC conductor resistance(20ºC):1.348Ω/km		Aged condition:			136±1ºC×168h
Voltage withstand test:AC 2.0kV/1min		Percent of original tensile strength:			≥70%
		Percent of original elongation:			≥65%

Construction
Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:PUR
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300 V
Rated Temperature:-40~80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.5kV/1min
Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
Properties
Halogen-free
Flexible at low temperatures up to -40°C
Resistant against pressure
Overroll steady
Cut and scratchproof
Resistant to
Oil
water
Acids
Lye
UV-radiation
Detailed Photos
Company Profile Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications
Production Progress
Packaging & Shipping
FAQ 1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
