China Professional Factory Bridge Filter Spiral Pipe Mill Machine Line

Product Description

China Professional Factory Bridge Filter Spiral Pipe Mill Machine Line
Product Description

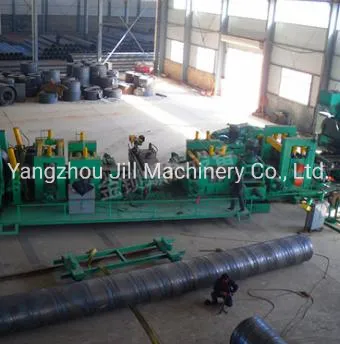

Spiral welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder.Large diameter pipes can be produced with narrow steel strip.
Machine production range
Below type machine was popular . We also accept customized according to your requirments.

Series	Min Pipe O.D.	Max Pipe O.D.	Min Thickness	Max Thickness	Coil width	Max Production capacity	Area
	mm	mm	mm	mm	mm	ton/year	m2
LH600	219 - 508	325 - 820	2 - 4	4 - 10	400 - 600	8000 - 12000	20×96
LH800	219 - 508	406 - 1220	2 - 4	4 - 12	400 - 800	9000 - 17000	20×96
LH1050	219 - 508	630 - 1620	2 - 4	4 - 14	450 - 1050	16000 - 23000	24×108
LH1250	406 - 610	820 - 1620	3 - 6	8 - 18	500 - 1250	26000 - 35000	24×108
LH1550	406 - 610	1420 - 3200+	3 - 6	12 - 25.4+	500 - 1550	36000 - 76000	26×125
LH2000	406 - 610	2020 - 3200+	4 - 6	20 - 25.4+	1000 - 2000	77000 - 93000	30×180

Applicable material
For liquid delivery: water supply& drainage; For gas delivery: coal gas, steam and LPG; For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.
Production process flow
Feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection
Our parterners
Certifications
Exhibition display
Packaging & Shipping
FAQ

1. Are you manufacturer or trading company?
We are manufacturer with 30 years experience , Which is located in Hebei Province ,China . Welcome to visit our factory.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
4. How long is the warranty period of your machine?
1 year .

---
