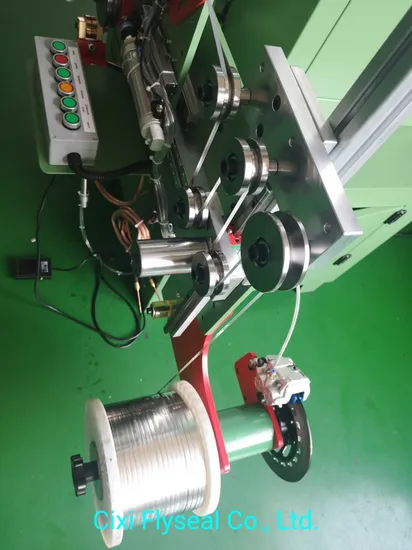

PX500D Automatic Winding machine is updated from PX500C model, it's our newest model for manufacturing spiral wound gasket form 1/2" to 12". Although it can produce maximum diameter up to 500mm, but recommend to produce up to 10" or 12". For bigger size, we suggest you choose our horizontal winding machine. On base of PX500C model, PX500D has updated many main parts like PLC, touch screen, servo driver, and welding control parts, the program is also updated. PX500D has improved a lot in production speed, machine steadiness, welding quality, and gasket finish. PX500D is the most popular and important machine for spiral wound gasket manufacturing.
| STYLE | PX500D | |
| Automatic winding machine for SWG | |
| Working mode | Both Manual and Automatic mode | |
| SS strip | both pre-formed SS strip in pancake or 20-25kgs spool of flat strip | |
| Producing ability | Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge | |
| SWG thickness | 4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts with extra change, V shape winding or W shape winding for option) | |
| Automatic function | PLC size controlling, Automatic spot welding, with SS strip forming roller, Automatic SS strip cutting. | |
| |
| Maximum gasket OD | 500mm | |
| Minimum gasket ID | 25mm | |
| Gasket OD tolerance | ±0.2mm | |
| Spindle speed | 0--300rpm | |
| Total power | 8kw | |
| Spindle motor power | 1.5kw | |
| Welder power | 6kw | |
| Power supply voltage | 380V or 220V for option, 3 phases | |
| AIR COMPRESSER | 0.6-0.8 MPA | |
| PLC | xinjie | |
| Production rate | 18-25s /pc (for ANSI 6" 150LB) | |
| Machine measurement | 1400*1200*1650mm | |
| Machine net weight | 400kg | |
