FRP Vertical or Horizontal Storage Tanks for Chemicals and Industry

Product Description

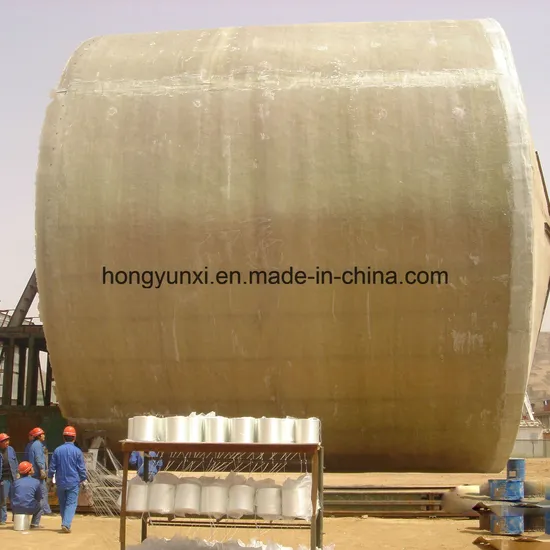

For the large FRP tank that can not be transported on road (diameter is larger than 4000mm), we can send our workers and equipment to appointed site for manufacturing.

Manufacturing flow process:

I Contract reviewing stage	Contract signing	Preparation by workshop	Transportation to site, including:	Manufacturing on site	Acceptance
1 Confirm the volume		4 Purchase the materials	7 Persons	13 Preparation of foundation	19 Inspection and test
2 Confirm the accessories		5 Prepare the equipment and mould	8 Equipment	14 Liner making by spraying process	20Acceptance
3 Confirm the assistant materials		6 Make the accessories	9Mould	15 Winding work	21 Leave
			10 Accessories	16 Curing
			11 Raw materials	17 Accessories assembly
			12 Other outsourcing parts	18 Installation of others

Based on the site condition, vertical winding and horizontal winding can be chosen.
Large FRP tanks manufactured on site are suitable to store a series chemical liquids, such as hydrochloric acid, sulfuric acid, phosphoric acid, nitric acid, organic acid, fluosilicic acid, hydrofluoric acid, brine, sewage, sea water, potable water, ect.
Standard accessories include: manhole, inlet, outlet, drain hole, imbedded part of anchor
Optional accessories include: liquid meter, ladder, handrail, anti-skidding layer, water seal tank, other accessories agreed.
Materials properties please see "HYX"2.1.

---
