| PARAMETER | ||
| OVERALL DIMENSION (mm) | Length | 12000 |
| Width | 2500 | |
| Height | 4000(box height 2400mm) | |
| WEIGTH (kg) | Kerb. Weight | 8500 |
| Max Payload | 40000 | |
| Total Mass | 48500 | |
| WHEELBASE (mm) | 6830+1310+1310 | |
| MAIN FRAME | ||
| DESCRIPTION | Heavy duty and extra durability designed high tensile steel Q345B, welded by automatic Submerged-Arc processes 500mm height Beam | |
| TOP FLANGE (mm) | 14 mm | |
| MIDDLE FLANGE (mm) | 8mm | |
| BOTTOM FLANGE (mm) | 16 mm | |
| PLATFORM | ||
| STRUCTURE (mm) | Front & Rear | 2mm(Detachable type) |

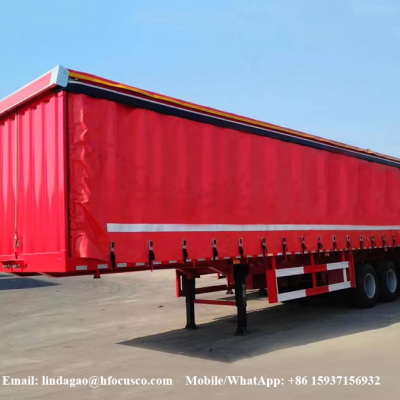

| Right & Left | PVC cover (750g/m2) | |
| Floor | 3mm, checked plate. | |
| SUSPENSION | ||
| Type | One Couple of Tri-axle Mechanical Suspension | |
| DESCRIPTION | Six Sets of 10 pieces 13x90mm leaf spring | |
| AXLE | ||
| MAKE & BRAND | Fuwa axle | |
| WEIGHT RATING & TOTAL AXLE | 13000kg x 3pcs | |
| KINGPIN | ||
| TYPE | One unit of 3.5'' SAE standard welded Kingpin | |
| LANDING GEAR | ||
| TYPE | 28T, 2 speed, manual operating, heavy duty landing gear | |
| BRAKE SYSTEM | ||
| TYPE | A system with emergency brake and parking brake; Dual line- air brake,piggyback spring on all axles;Two units of WABCO RE 4 relay valve(or equivalent); Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, two units of 40L air tanks; two units of standard copper air-connector. | |
| TIRE & RIM | ||
| RIM SIZE X NUMBERS | 8.25 -20 x 13pcs | |
| TYRE TYPE & SIZE X NUMBERS | 11.00R20 x 13pcs (including one spare tyre) | |
| SPARE WHEEL CARRIER | One set of spare wheel carrier | |
| ELECTRICAL SYSTEM | ||
| VOLTAGE | 24 volt standard 7 pin plug SAE / ISO1185 socket, support from tractor | |
| ELECTRICAL APPLIANCES | Tail lamp with turning signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable | |
| ACCESSORIES | ||
| STANDARD | One tooling box with a set of standard trailer tool | |
| Option 1 | Front wall, Rear door, Top roof are detachable type, which should be assembly in destination country by customer. | |
| Option 2 | 40ft container transport is available if the length change to 11.5 meter, which could save large sea freight. | |
