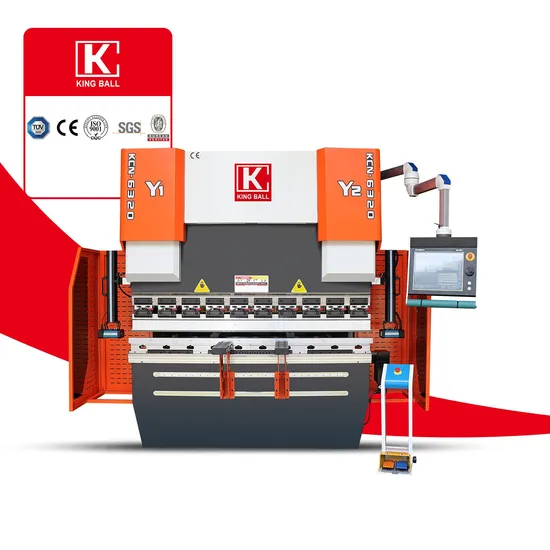

CNC Servo Electric Press Brake CNC Electric Hydraulic Servo Synchronized Press Brake

Product Description

Screen	10.1" TFT Colour LCD display	15" TFT Colour LCD display	17" TFT Colour LCD display	17" TFT Colour LCD display
Resoluntion	1024 x 600 pixels, 32 bit colour	1024 x 768 pixels, 32 bit colour	1280 x 1024 pixels, 16 bit colour	1280 x 1024 pixels, 32 bit colour
Maximum axes	Up to 4 +1 axes ()	Up to 4 +1 axes	Up to 8 +1 axes	Up to 8 +1 axes
Program method	numerical + 2D graphical (optional)	numerical + 2D graphical	numerical + 2D modular	numerical + 3D modular
Touch sensor	Full touch screen control (PCT-touch)	Full touch screen control (PCT-touch)	Full touch screen control (IR-touch)	Full touch screen control (IR-touch)
Storage capacity	1 GB	1 GB	1 GB	2 GB
Product and tools memory	256MB	256MB	256MB	256MB
Networking	/	Optional	Standard Windows® networking	Standard Windows® networking
Bend sequence calculation	/	Standrad	Standrad	Standrad
Offline software	Profile-53TL	Profile-58TL	Profile-TL	Profile-T3D
Tandem capability	Optional	Optional	Optional	Optional
Language	BR, CN, CZ, DK, NL EN , FI, FR,DE, GR, HU, IT JP , KR,LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU , IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR

Parameters of pure electric press brake

Full Servo CNC Press Brake			3012	4016	6020	8025	10032
Capacity		kN	300	400	600	800	1000
Max. Bending Length		mm	1250	1600	2000	2500	3200
Between Columns		mm	800	1200	1600	2100	2600
Max. Shut Height		mm	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200
Throat Depth		mm	250	250	350	350	400
Down Speed		mm/min	200	200	200	200	200
Pressing Speed		mm/min	0-30	0-30	0-30	0-30	0-30
Return Speed		mm/min	200	200	200	200	200
Main Motor Power		kW	18	7.5*2	18*2	28*2	41*2
X axis stroke		mm	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	300
R axis stroke		mm	200	200	200	200	200
R axis speed		mm/s	60	60	60	60	60
Outline Size	L	mm	1700	2500	2500	3000	4500
	W	mm	1450	1750	1750	1750	1920
	H	mm	2400	2500	2600	2600	2700
Weight		kg	3000	4500	5500	7200	10500

Main Ball screw Unlike traditional electro-hydraulic servo press brakes, our advanced motor technology adjusts power consumption based on load, ensuring significant energy savings and enhanced economic benefits. Main motor
The servo motor, working through a synchronous toothed belt and ball screw transmission, ensures precise control of the machine beam's vertical movements. This technology delivers higher speed and precision, providing superior performance for your tasks.
Our ServicePre-sales services:1. Inquiry and consulting support
2. Sample testing support
3. Factory visits welcome
After-sales services:1. Two-year warranty period
2. Comprehensive training on installation and usage of the brake press machine
3. Availability of engineers for overseas machinery serviceContact Ways Ms. Linda ZhangCustomer Manager
FAQ
1. Can you supply the relevant documentation?
Yes, we can provide a wide range of documentation including Certificates of Analysis/Conformance, Insurance, Origin, and other necessary export documents.
2. What is the average lead time?
For machines in stock, lead time is within one week. For mass production, it ranges from 20-35 working days after the deposit payment is received.
Lead times start when (1) we receive your deposit, and (2) we receive your final product approval.
If our lead times conflict with your deadlines, discuss your needs with your sales representative. We strive to accommodate your requirements wherever possible.
In most instances, we manage to fulfill your needs.
3. What kinds of payment methods do you accept?
Payments can be made to our bank account, via Western Union, or PayPal: 30% deposit in advance, 70% balance against the copy of B/L, or an irrevocable LC at sight.
4. What is the product warranty?
We guarantee the quality of our materials and workmanship. Our commitment is to ensure your satisfaction with our products. Whether within the warranty period or not, our company culture is to address and resolve all customer issues to everyone's satisfaction.
5. Do you guarantee safe and secure delivery of products?
Yes, we use high-quality export packaging and specialized packing for dangerous goods and temperature-sensitive items. Additional costs may apply for specialist or non-standard packing requirements.
6. How about the shipping fees?
Shipping costs depend on the chosen method: Express is fast but costly, while sea freight is economical for larger volumes. Exact freight rates can be provided once we have details of the amount, weight, and shipping method. Contact us for more information.

---
