Compact Back Small Digger Digging with High Quality 1.7 Ton Mini Excavator Digger

Product Description

1.Model
Model NO.
HQ16-9B
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Ground Pressure
28 Kpa
Power Output
10kw/2200rpm
Engine
Yanmar 3tnv70
Travel System
Eaton
Hydraulic System
NACHI, Japan
Main Control Valves
Hydro Control, Italy
Swing System
Eaton
Bucket Width
450 mm
Max. Digging Height
3327mm
Max. Dumping Height
2361mm
Max. Digging Depth
2110mm
Max. Digging Distance
3947mm
Trademark
HQ
Transport Package
Load 4 Units in One 20gp Container
Specification
1.7 ton
Origin
China
2.Supply Ability
Supply Ability 500 Piece/Pieces per Month
3.Packaging & Delivery
Packaging Details Wooden case or as your convenience

Name:HQ 16-9B excavator/mini digger(10KW) Advantage Points: 1 Have passed CE certificate. 2 Originally imported Yammar engine, low noise, low fuel consumption, big torque. 3 Main pump:CASAPPA,Valve:Hydro Control, Swing motor:Eaton,Travel motor:Eaton,with reliable quality. 4 Power system and hydraulic system cooperate well to improve 10% dig power. 5 Optional extension track to improve stability. 6 Boom deflexion meet narrow work condition. 7 Optional hydraulic quick hitch, hammer, ripper and drill.

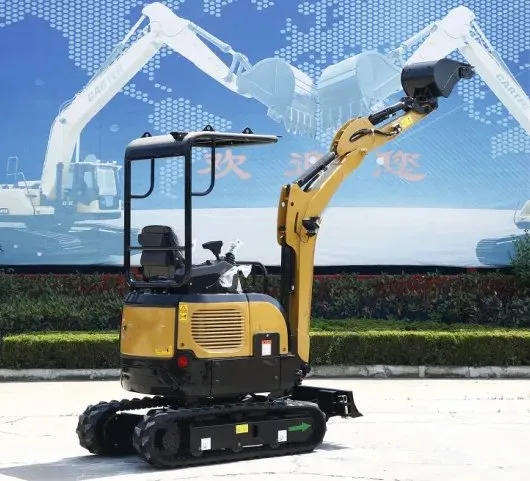

3.Products Pictures:
4.Specification:

Operating weight	1.8/1.9	1.8/1.9
Bucket capacity	0.04	0.04
Engine model	YANMAR	YANMAR
Rated power (kw/r/min)	15/2400	11.2/2400
Hydraulic pump model	CASAPPA, Italy	China Brand
Max.flow (L/min)	54	43.2
Working pressure (Mpa)	21	21
Control valve model	Hydro Control, Italy	China Brand
Swing motor model	EATON	EATON
Travel motor model	EATON or LKC	EATON or LKC
Fuel tank capacity (L)	32	32
Hydraulic oil tank capacity (L)	21	21
Travel speed (km/h)	2.2/4.2	2.8
Swing speed (r/min)	8.8	10.5
Max. climbing degree (%)	58	58
Arm digging force	10.2	9.5
Bucket digging force (KN)	14.8	14.5
Average grounding pressure (Kpa)	28	28
A-Overall length (mm)	3867	3867
B-Overall width (mm)	1000	1000
C-Overall height (to top of boom)(mm)	1185	1185
D-Overall height (to top of cab)(mm)	2313	2313
E-Counterweight ground clearance(mm)	484	484
F-Min. ground clearance (mm)	175	175
G-Tail swing radius (mm)	1072	1072
J-Track length (mm)	1210	1210
J-Track length (mm)	1588	1588
K-Track gauge (mm)	760 (1090 after extension)
L-Track width (mm)	990 (1320 after extension)
M-Track shoe width (mm)	230	230
N-Turntable width (mm)	1000	1000
O-Max. digging height (mm)	3327	3327
P-Max. dumping height (mm)	2361	2323
Q-Max. digging depth (mm)	2110	2110
R-Max. vertical wall digging depth (mm)	1600	1600
T-Max. digging reach (mm)	3947	3947
U-Max. digging reach at ground level (mm)	3889	3889
V-Min. swing radius (mm)	1575	1575
X-Distance between center of rotation and tail length (mm)	665	665
Y-Track shoe thickness (mm)	5	5
Z-Height of counterweight (mm)	794	794
A1-Ground length (in transportion)(mm)	2611	2611
Arm length (mm)	950	950
Boom length (mm)	1830	1830

5.Working Case in the foreign countries of Haiqin Machinery
6.Certificate of Haiqin Machinery
7.MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
8.Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
