Fine Grinding of Waste Plastic and Rubber Single Shaft Shredder

Product Description

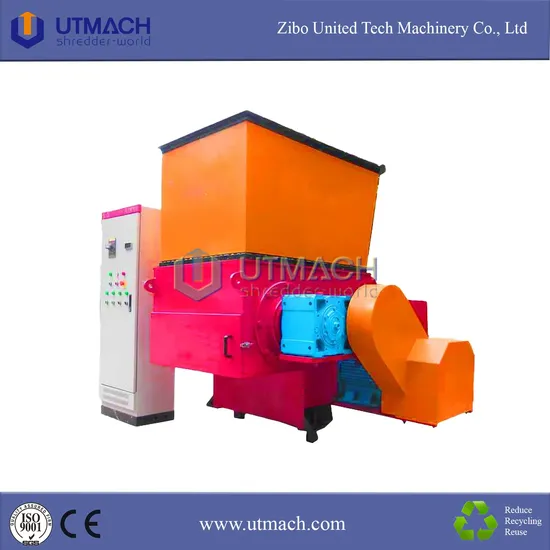

S series Single Shaft Shredder
Product Description
Introduction >>
With the function of microcomputer control system, this series of single-shaft shredder is possible to control automatically start,stop. Automatic reverse sensors to protect the machine against over loading and jamming. Featuring low speed, high torque,low noise, etc. The output capability typically range between 300kg/h -5,000kg/h depending on the different model and different materials.
Single shaft shredder is available to recycle wide range of material. It is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non-metallic materials. As per our customer's requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable proposal for our clients. After being shredder by the machine, the output material could be used directly or go int to the next step of size reduction.

Advantage >>
• Detachable rotor blade, easy disassemble and installation, and simple maintenance
• Automatic feeder, increase produce efficiency
• Quick change screen for accurate particle size control
• Shock absorbing gearbox reduces stress on drive components
• Integrated rotor, assured the cutter clearance between the rotor blade and the counter blade
• Enclosed bearing protection design, waterproof and dustproof, extend the bearing work life
• PLC control system, automatic reverse sensor to protect the machine against over loading and jamming
• Provide the rotor cooler system against the low melting materials, prevent the materials burning while the temperature higher

Applications >>

Single shaft shredder is available to recycle wide range ofmaterial. lt is an ideal machine for plastic, paper, wood, fiber,rubber, organic waste a wide variety of non-metallic materials.

Product Parameters

Model	S2260	S3060	S3080	S4080	S40100
Dimension L/W/H (mm)	1780*1290*1690	2455*1478*1700	2455*1678*1700	2825*1747*1875	2825*2004*1875
Cutting Chamber Size (mm)	790*600	1200*600	1200*800	1400*800	1400*1000
RAM (mm)	500	600	800	800	1000
Rotor Blade Diameter (mm)	220	300	300	390	390
Rotor Ratate Speed (r/min)	80	80	80	80	80
Motor Power (kw)	18.5	22	30	37	45
Pushing Device Power (kw)	1.5	2.2	2.2	2.2	5.5
Net Weight (kgs)	2400	2600	2950	3500	4000
Model	S40120	S40150	S48150	S48200	S48250
Dimension L/W/H (mm)	2825*2564*1875	2825*2964*1935	3255*4415*2720	3255*4415*2720	3255*4615*2720
Cutting Chamber Size (mm)	1400*1200	1400*1500	1650*1500	1650*2000	1650*2500
RAM (mm)	1200	1500	1500	2000	2500
Rotor Blade Diameter (mm)	390	390	480	480	480
Rotor Ratate Speed (r/min)	80	80	80	80	80
Motor Power (kw)	55(30+30)	75(45+45)	110(55+55)	75+75	90+90
Pushing Device Power (kw)	5.5	5.5	5.5	5.5	5.5
Net Weight (kgs)	5000	6200	8000	11000	12500

Note:
1. The voltage and motor power supply can be selected by the customer's specific requirements.
2. The shredder capacity can be influenced by the material composition and output size. We provide Customized Machines.
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.

---
