Three-Phase Electricity Lead-Acid Charger 80V 60A for Electric Folklift\Electric Plate Truck \ The Capicity Of390-450ah Spswa38060

Product Description

Product Description

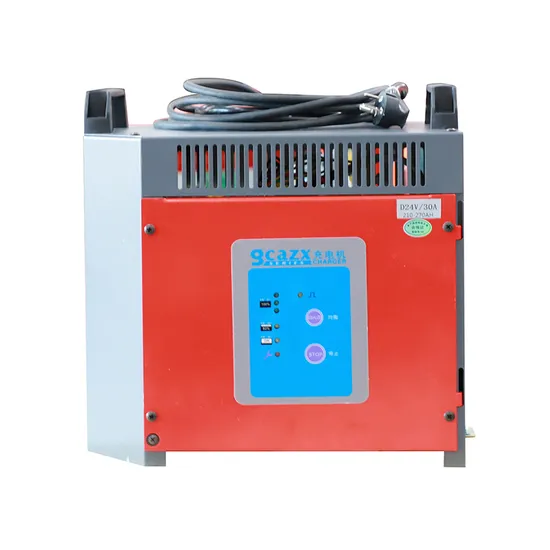

lead-acid battery charger

24V 30A LiFePO4 Lithium Battery Charger for Electric Industrial Vehicle
Brief Description:
Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Specification:

Product Parameters
24V25A Battery Charger Parameters

Name:	lead-acid battery charger
model:	80V125A
Shell Color:	Red
Size:	540X490X600mm
Constant Charging Current:	125A
Charging Mode:	3 Stages, CC, CV, Trickle
Net Weight:	115KG
Output :	Maximum output voltage DC 80volt, Maximum output current 125 amp
Constant Charging Voltage:	80V (4s lifepo4 battery)
LED Indicator:	Red--charging, Green--full
Applications:	RVs, Commercial Vehicles, Boats, Yachts, and many more!
Various Protection:	No-load Output, Anti-reverse connection, Short-circuit protection, Over-temperature protection, Low-voltage protection, Over-voltage protection, Over-current protection

Other Item Battery Charger

Model Number	XYM12V30A	XYM2415A	XYM2420A	XYM36V15A	XYM48V10A	XYM60V8A
Max charge curent (A)	30A	15A	20A	15A	10A	8A
Maximum power point	17V	34V	34V	45V	68V	75V
Input Voltage (DC)	17V	34V	34V	45V	68V	75V
Applicable battery	Lead acid maintenance free, lithium ternary battery, LiFEPO4
Maximum efficiency	90%
Output voltage stabilization accuracy	±1%
Input Voltage Stabilization Accuracy	±1%
Work Temperature	-30ºC-65ºC
Seismic grade	SAEJ1378
Cooling method	Forced air cooling
Over temperature protection	75ºC±5ºC
Input undervoltage protection	Under voltage point 165V
Output overcurrent protection	110*Max charge current
Output short circuit protection	The charger shuts down and automatically recovers after the short circuit is removed when the output is short circuited,
Battery reverse connection protection	The charger shuts down and gives an alarm, which automatically recovers after connect correct when the battery line is connected inversely.

battery type	battery cell	nominal voltage	charge voltage	charge current
3.2VLifepo4	12V	4S	14.6V	40A
	24V	8S	29.2V	30A
	36V	12S	43.8V	25A
	48V	16S	58.4V	20A
	60V	20S	73V	15A
	72V	24S	87.6V	12A

Lithium battery customization Lithium battery manufacturers
INTRODUCTION Most of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:

1	Big volume and high weight, not convenient for transportation and use
2	Lacking protection function, bad reliability
3	Must manual adjust charge current, difficult to full charge and avoid over charge the battery.
4	Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.

ADVANTAGE

1	Short-circuit protection: output current will cut off automatically when short-circuit.
2	Overload protection: Output Current Will Be Limited Automatically When Overload.
3	Reverse polarity protection: it will shut down until fuse or the fault removed.
4	2-stage charging mode: CC(Constant Current), CV(Constant Voltage)
5	Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.
6	LED Meter available: Show Charging Voltage and Charging Current.
7	All kinds of production has passed the CE certification and ROHS.
8	Aluminum shell:The charger body uses aluminum shell,convenient heat dissipation ,and is not easy to deform ,not easy to damage,give you a perfect apperance and use experience.
9	Automatic Fan Forced Ventilation Forced Ventilation helps to cool the charger in time
10	Note: The charger should be placed in good ventilation and free of flammable materials.

Scene description

About the plug of the charger

APPLICATION FILED

Common Faults and Solutions: 1) Error input voltage: Check if the input voltage conformed to the requirement or not.
2) Abnormal AC input: Check whether there is AC voltage and whether the input plug is loose.
3) Machine over heat: Check that the fan is running. Also pay attention to ventilation at the
working place of charger, covering anything on the charger is not allowed.
4) Output short circuit: Check the wire line of output terminal to exclude short-circuit.
5) No battery or reverse connection: Check the battery connection, connect the battery correctly.
6) Battery voltage is too low: Make battery voltage up to the starting voltage of charger

Production Line

Hot sale Products
If have any interest,please do not heasite clink below pictures.you will find what you need


Packaging & Shipping

Company Profile
SPIDERWAY Lithium Technology
Global Leader in Industrial LFP Lithium Battery Manufacturing and Supply
Company OverviewSPIDERWAY's factory, located in Hefei, Anhui, China, is a key hub in the global lithium battery industry. Specializing in LFP battery solutions for industrial vehicles, aerial work platforms, GSE (Ground Support Equipment), and custom applications, SPIDERWAY collaborates with top universities to advance LiFePO4 battery research and development (R&D). We offer high-quality production, OEM/ODM services, and a full suite of power management systems, including battery management systems (BMS), DC-DC converters, and controllers. Our mission is to deliver robust and reliable industrial power systems worldwide. Company BackgroundFounded in 1999, SPIDERWAY's parent company, ECAS, has over 25 years of experience in electric motor controllers, DC-DC converters, wiring harnesses, and instruments. This wealth of expertise has enabled SPIDERWAY to emerge as a leader in LiFePO4 battery production for a wide range of industrial vehicles. Technological Advantage & Production CapacitySince 2017, SPIDERWAY has developed a state-of-the-art LFP battery production line. By leveraging China's robust lithium supply chain, we offer highly competitive OEM/ODM services with a production capacity of over 10,000 heavy-duty LFP battery packs annually. LFP Lithium Battery Products Electric forklift batteries Fuel forklift LFP conversions Lead-acid replacement LFP batteries Golf cart lithium batteries Airport GSE batteries Aerial work platform batteries Port logistics and AGV/IGV batteries Energy Storage Systems (ESS) Custom warehouse solutions Industrial Vehicle LFP Power Lithium Battery DC-DC Converter Product FeaturesSPIDERWAY uses A-grade battery cells sourced from renowned manufacturers such as CATL, BYD, EVE, and Lishen. Our LFP batteries come with a minimum 5-year warranty and guarantee over 5,000 charging cycles. Some models can achieve up to 10 years of lifespan with 10,000 charging cycles. Certifications & ExhibitionsAll SPIDERWAY batteries meet international certification standards, including UL, CE, FCC, and ROHS. We have showcased our products at prestigious international exhibitions such as MAT Korea and the Russia Warehouse Expo. Global Market CoverageSPIDERWAY products are sold in over 100 countries, including the United States, Japan, South Korea, Spain, and Australia. Our international support teams are based in Kansas and Seoul to ensure timely customer service and technical support. Battery Compatibility with Major BrandsSPIDERWAY's LFP batteries are compatible with major global brands such as HELI, Toyota, Doosan, Crown, Additionally, our batteries are suitable for golf cart brands like E-ZGO, Club Car, and Yamaha, as well as aerial platform brands like Skyjack, JLG, and Genie. Global Service & E-Commerce PlatformsSince 2017, SPIDERWAY has expanded its reach through e-commerce platforms including Amazon, eBay, and our official website. With global shipping partners FedEx and DHL, we ensure timely delivery to 95% of regions worldwide. HELI Forklift Distribution BusinessAs an authorized dealer of HELI forklifts, SPIDERWAY offers the full product line with fast global delivery, competitive pricing, and comprehensive support solutions. Our strategic location near HELI's headquarters in Hefei provides us with a unique supply chain and pricing advantage. We also offer used handling equipment at competitive prices. Customer Feedback"SPIDERWAY's quality and pricing helped us succeed in Korea's energy market."
- RE:TEN New Energy, South Korea Talent & InnovationLocated near top universities, SPIDERWAY attracts the brightest minds in LiFePO4 battery technology, strengthening our position as a global leader in the field. Sustainability & InnovationAt SPIDERWAY, we are committed to sustainability and innovation, driving the global industrial transition to clean energy and promoting a greener future.
Contact UsFor reliable, high-performance lithium battery solutions, contact SPIDERWAY's expert team today.
