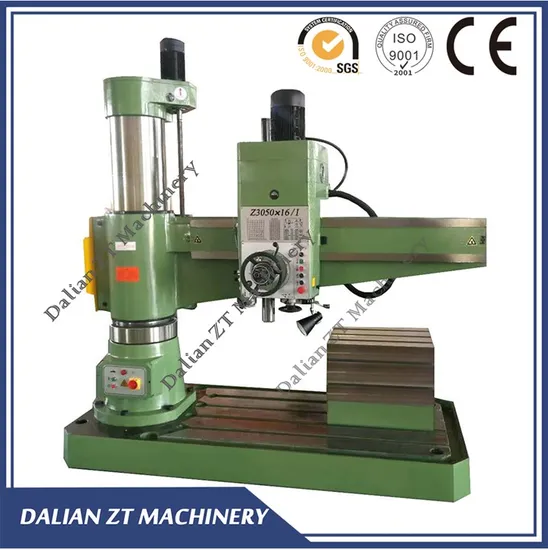

Hydraulic RAM Radial Drilling Machine Z3050X16 -1 Z5040

Product Description

The radial drilling machine is the universal machine for general purposes, and suitable for drilling, counter boring, reaming, spot facing and tapping on mediator Large sized parts. Boring is also possible where such technological equipment is available.
Features :
1. Their adoption of hydraulic pre-selected change speed mechanism saves setting time.
2. Such motions as the forward and reverse rotation of the spindle, braking, speed changing, as well as its neutral position are controlled
by a hand lever. This facilitates easy operation.
3. A hydraulic driven rhombic block clamping mechanism is adopted for the
spindle head , the arm, the inner and outer column, which ensures reliable clamping.
4. Upper guide way on the arm, circular surface of the outer column, spindle and
its sleeve as well as the rotary path of the inner outer columns have undergone hardening treatment, so that the ratability of the machine
accuracy is retained for along time and that the service lives of the machine are prolonged.
5. Complete safety device and outer column protective device are provided in these machines.

Model Item	Unit	Z3050×16/I
Max drilling diameter	mm	50
Distance between spindle axis and column (min/max)	mm	350/1600
Distance between spindle axis and working surface of machine base (min/max)	mm	320/1220
Rang of spindle speed	r/mm	25-2000
Number of spindle speed	No.	16
Rang of spindle feeds	mm	0.04-3.2
Spindle taper(Mohs)	No.	5#
Number of spindle feeds	No.	16
Spindle travel	mm	315
Worktable dimensions	mm	630×500
Horizontal	mm	1250
Max torque of spindle		980
Power of main motor	kW	4
Distance of headstock horizontal movement	mm	1250
Weight of the machine	kg	3500
Overall dimensions of the machine	mm	2500x1070x2840

Standard accessories:
Worktable 1 set
Foundation bolt 6 pcs
Reducing sleeve 4 pcs
Wedge 2 pcs
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.

3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
