Automatic Crane Round Lifting Electro Magnet Lifter Excavator for Handling Ingot and Scrap

Product Description

As the professional level of users is getting higher and higher, in order to meet the customer's demand for products,
Jingong Machinery constantly innovates and upgrades the products, and optimizes and improves the products from
the professional perspective of future development.
Since its establishment in 1997, Jingong has always been adhering to the business philosophy of "survive by quality,
rely on efficiency through management", put customers first, and develop and manufacture products that are popular
in the market.
Product Description

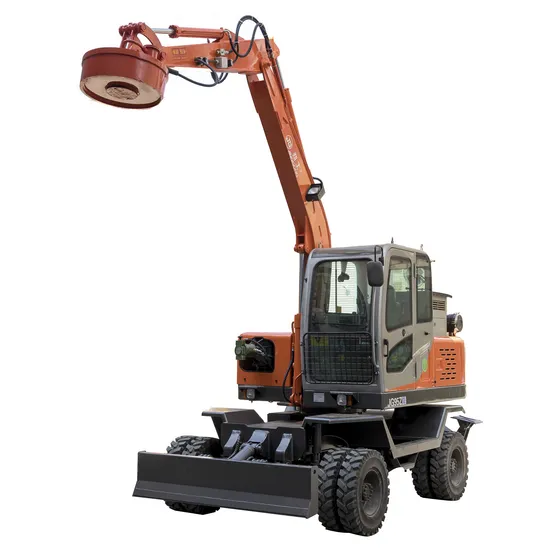

Ferrous waste&metal scrap handling equipment JG95Z compact rotating magnetic chuck
excavator machine
It is designed to lift and move cast ingots, steel ball, sheets, bars and scrap of ferromagnetic materials.
The magnets are to be attached to cranes, excavator, and other hoisting machines at metallurgical plants, scrap yards
and ship-building plants.
Magnet Plate For Excavator Main Features:
-- Adopt totally sealing structure with good property of moisture-proofing
-- Majorized design by computer with reasonable structure, light dead-weight, strong attraction force
and low energy consumption
-- The energizing coils are processed by special technology to improve the electrical property and
mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
-- Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 60%, which
improves the efficiency of the electromagnet
-- High temperature type electromagnet adopts unique method of heat protection, the temperature of the
attached materials is increased from 600 ° C to 700 ° C, which expands application range of the electromagnet
-- Simple and convenient installation, operation and maintenance
Specifications

SPECIFICATIONS
RANGE OF OPERATION			Boom length				3300mm
			Arm length				1850mm
			Diameter of eletric sucker				800mm
			Maximum suction weight				500kg
			Maximum Digging Reach				6240mm
			Maximum Digging Depth				3200mm
			Maximum Digging Force				45KN
			Maximum Digging Height				6970mm
			Maximum Dumping Height				4950mm
			Back-end radius of gyration				1980mm
DIMENSION			(Length*width*height) travel position				5800*2100*2850mm
			Wheel base				2400mm
			Track(Front/rear)				1850mm/1750mm
			Ground clearance of counterweight				1160mm
			Min ground clearance				200mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				7000kg
			Engine model				YUCHAI 4FA65
			Rated Power				48KW
			Rated Speed				2200r/min
			Hydraulic system working pressure				20Mpa
			Hydraulic system flow				120L/min
			Metering gear pump				2*28ml/r
			Max Hauling force				45KN
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				825.16
			Volume Of Bucket				0.2-0.3m3
			Revolution Overdrive Pressure				16Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥4L/h
			Capacity Of The Fuel Tank				110L
			Hydraulic Tank Capacity				110L

Product
Our company mainly produces wheeld excavator, crawler excavator, grapple excavator, material handler, railway machine,
sugarcane combine harvester.
Optional Working Device
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks,
pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the
performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary
hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
Workshop Display
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality.
We have rigorous production procedures, and each production process is carried out under strict quality inspection.
Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating
a neat, clean and safe working environment.
