Affordable Wood Drum Sander for Precision Woodworking Projects

Product Description

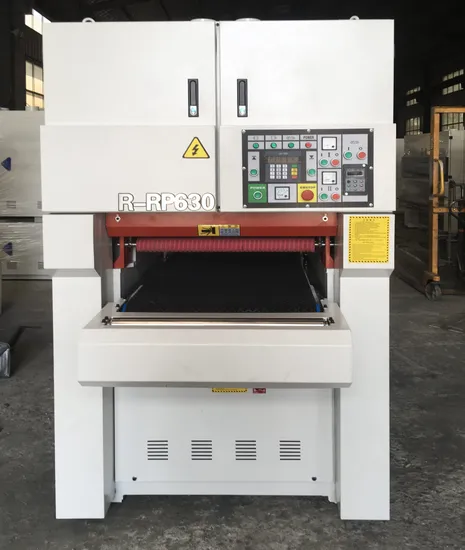

ZDR-RPSeries GENERAL CALIBRATING WIDE BELT SANDER

The machine adopts welded steel, after quenching, with good stability.
Imported conveyor belt, good reliability, durability.
The series uses the beam barrel and the beam seat structure, good stability, easy maintenance. Belt tension cylinder adopts cast iron processing, tensile strength is great, good stability. Conveyor belt adjusting cylinder adopts 63x20 cylinder, large power, and good stability. Active roll stigmas are bold, and after quenching, ensure the stability and durability of the driving roller.

Specification:

Model	ZDR-RP630	ZDR-RP1000	ZDR-RP1300
Max working width	630mm	1000mm	1300mm
Material thickness	2-120mm	2.5-120mm(option 2.5-160mm)	2-120mm(option 2.5-160mm)
Min. Working length	350mm	350mm	350mm
Feeding speed	6-30m/min	6-30m/min	6-30m/min
1# sanding belt speed	18m/min	18m/min	18m/min
2# sanding belt speed	14m/min	12m/min	12m/min
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Main motor power	11kw,7.5kw	15kw,11kw	37kw,22kw
Total power	20.74kw	30kw	56.74kw
Working air pressure	0.5mpa	0.55mpa	0.55mpa
Volume of dust collecting	5000m3/h	5500m³/h	5000m³/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension(L*W*H)	1700*1100*2050mm	1700*1400*2050mm	2750*2200*2050mm
Weight	1300kg	2000kg	3200kg

Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES
CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
