Movable Wood Chipper with Feed in Chain Conveyor and 120HP/160HP Diesel Engine

Product Description

Product Description
Mobile branch shredder brush crusher wood splitter wood chippers and shredders for sale
Product Description:
The branch shredder is suitable for gardens, orchards, road tree maintenance, parks, and residential roads to smash branches. The shredded branches can be used for in-situ burying and covering, garden bed bases, edible fungi, papermaking, biological power generation, papermaking and other waste reuse. The crushed wood chips can be sprayed directly into the vehicle, reducing the volume by 80%, saving transportation costs, energy saving and environmental protection.
Parameters

Machine size	Length 5.2m x Width1.8m x Height 3.35m
Weight	3.2t
Feed in size	960 mm x 512 mm
Feed in Roller	2(+)two feed in rollers(Up feed in roller+bottom feed in chain conveyor)
Rotor size	655 x 500mm
Feed in roller size	600 x 480mm
Blade size	270 mmx 110mm x 18mm
Blade type	Double cutting edges
Blade quantity	4 + 1
Feeding platform length	1790mm
Diesel engine	160HP turbo charging engine 160HP ,China
Silencer	Silencer uses special silencer cotton
Max crushing log diameter	40cm
Feed in speed	0-36m/min
Feed in system torque	548N.m
Feed in shift	Feed in-Stop-Reverse
Main drive type	America WPT brand industrial clutch+belt drive
Feed in type	Hydraulic motor automatic feed in(with control valve)
Discharge height	3.2m
Rotor rotation speed	2050 rpm
Working mode	Fixed,towable
Brake type	Pneumatic brake
Start mode	Electric start
Voltage	24V
Tire	750-16
Fuel tank volume	50L
hydraulic oil tank volume	72L
Lubrication system	24 Voltage,Automatic grease lubrication system,lubricate required parts regularly
Screen	Engine rotation speed,water temp,engine oil pressure,electric quantity,fuel level,hydraulic oil level,working time
Safety equipments	Blade rotor safe lock,emergency stop button,emergency stop gear lever,back indicator light

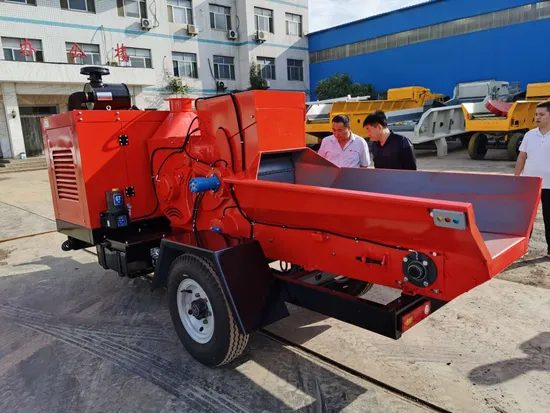

Machine pictures,it has a steel plate feed in conveyor,so you can use loading machine to feed in wood,no need manpower
Sketch
Manufacturing
Shipment(need one 20GP)
Clients visit and Exhibition
Cerficate

---
