Paper Finishing Pile Turner Dust Removing Turning

Product Description

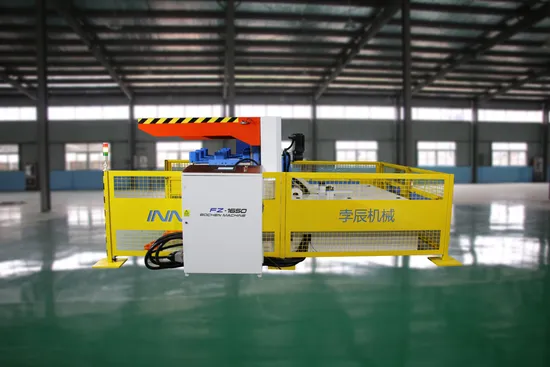

PT1300/1450/1650/1900 Pile Turner
Function:
Replace the tray, align the paper, Remove dust from paper, loosen the paper, dry, Neutralize odors, take out the damaged paper, center, and adjust the temperature, humidity and air volume.
1. Operability: two operation panels make manual operation more convenient.
The operation panel on the pile turner enables people to control the operation process of the machine more intuitively and conveniently:
Control the wind volume, align the paper pile back and forth, adjust the clamping force and shaking force of the paper pile, etc.


2. Hydraulic system: temperature control device is used to prevent the instability of hydraulic system in high temperature season and cold season.

Performance characteristics
1. Flip the paper pile to replace the tray
Flip the original tray onto the top of the paper pile through the flip function, which is convenient to manually take out the original tray and replace it with other trays. Then flip the paper pile back to its original position with the flip function (especially when the paper pile is purchased and the tray is made of wood).
2. Align the paper, Remove dust from paper, loosen the paper, dry, Neutralize odors, take out the damaged paper, center, and adjust the temperature, humidity and air volume, replace the tray.
Align: The paper is aligned by blowing (adjustable air volume) and vibrating (adjustable vibration amplitude), which makes the paper loose and removes dust and impurities in the paper pile (prolonging the service life of the printer and improving the printing clarity), and neutralizes the paper smell (playing an important role in food packaging) by adjusting the air volume. The wind makes the ink in the paper pile dry quickly and can adjust the temperature and humidity, to prevent the quality and efficiency from being affected by the warpage of the paper in the subsequent production and processing process. In the process of paper aligning, the damaged paper in the paper pile can be pulled out.

3. The machine can efficiently align the paper pile (about 3 minutes).
4. Automatic paper pile feeding and output function (optional).

Technical Parameter
Model	PT1300	PT1450	PT1650	PT1900
Maximum paper size(mm)	800*1300	1100*1450	1200*1700	1400*850
Minimum paper size(mm)	500*600	500*600	500*600	500*600
Power supply	3P 380V AC 50HZ
Machine weight(kg)	3500	4800	6500	8000
Max. weight of paper pile(kg)	1000	1400	2500	3000
Paper pile height(mm)	800-1600	850-1600	850-1600	900-1600
Total machine power(kw)	10	12	14	22
Machine size(mm)	10600*2400*2750	11400*2600*2950	1300*2700*2950	13800*2900*2950

---
