Wood Chips Processing Machine Movable Chipper

Product Description

Wood Chips Processing Machine main machine Photo

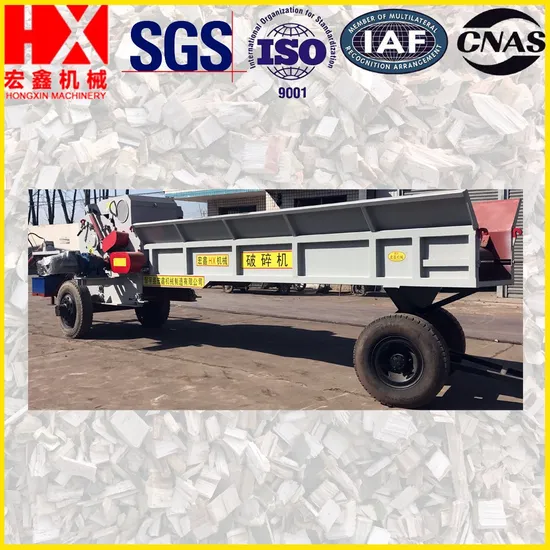

Wood Chips Processing Machine Whole set photo
Brief Introduction
Wood Chips Processing Machine is a specialized equipment for producing wood chips in wood factory, and widely used for preparing raw material in chipboard plant, fiberboard plant and paper-making plant.
Raw material of Wood Chips Processing Machine are mainly undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as waste of flax, cotton stalk, reed and bamboo.)
Wood Chips Processing Machine is an advanced wood chipper and featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.
Product Structure
Wood Chips Processing Machine is composed of engine base, knife roller, upper and below feeding mechanism, feeding conveying device, discharging conveying device, hydraulic buffer system and electrical control system.
Detailed Photos
Product Parameters

Machine name	Wood Chips Processing Machine
Model	HX218	HX426	HX428	400A	400B	400C	400D
Rotor diameter (mm)	800	650	800	650	650	650	650
Cutter quantity (piece)	3	4 or 24	4 or 24	3 Or 25	3 Or 25	6 Or 25	6 Or 25
Input size (mm)	680 x 310	1250 x 250	1250 x 310	680 x 420	680 x 420	1000 x 420	1000 x 420
Rotor rotation speed (rpm)	650	600	650	720	720	720	720
Max material diameter (mm)	300	240	300	300	300	300	300
Production capacity (TPH)	8-10	10-12	12-15	8-10	8-10	10-12	10-12
Main motor power (kw)	110	132	160	90	90	132	132
Feeding conveyor length (m)	4	4	4	4	4	4	4
Discharge conveyor length (m)	10	10	10	10	10	10	10
Weight (t)	7	8.2	10.4	7	7.5	8.5	9

Company Profile
Shandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
Certifications
Shandong Hongxin Machinery have obtained ISO 9001, CE certificates and many patents.

---
