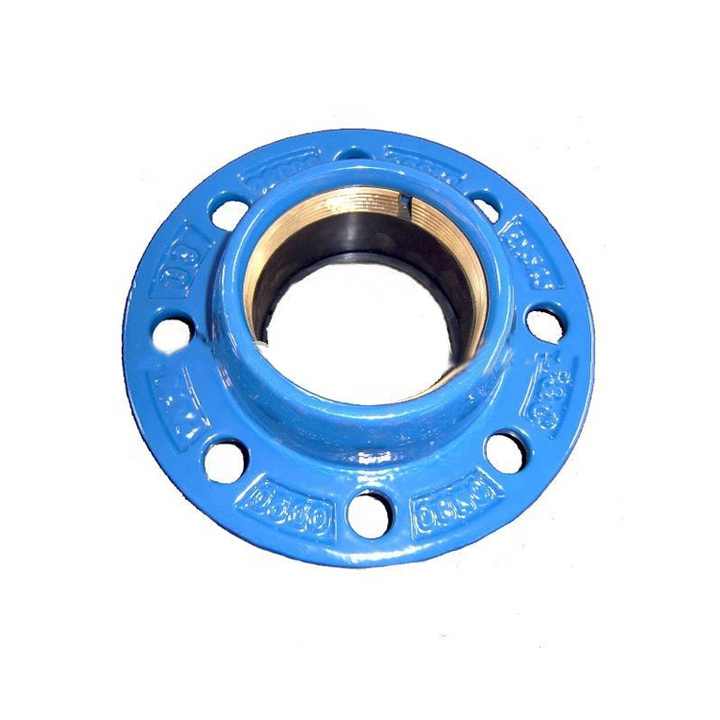

Quick Adaptors are designed for use on air, water, sewer and gas pipelines. The adaptors are for joiniting with PVC or PE pipes. Quick Adaptors can be manufactured to special flange drilling such as BS4504 PN10,16,25, 40, BS10 Table D,E and F or ANSI flange drilling.
1
| Size:
| DN40~DN300mm
|
2
| Material:
| Ductile iron, cast iron
|
3
| Standard:
| ISO2531, EN545
|
4
| Pressure:
| PN10/PN16
|
5
| Body material:
| Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting
|
6
| Gasket material:
| NBR or EPDM
|
7
| Bolts and Nuts:
| Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316
|
8
| Delivery time:
| About 30 days
|
