Product Details
Product Description
Product Description
purpose

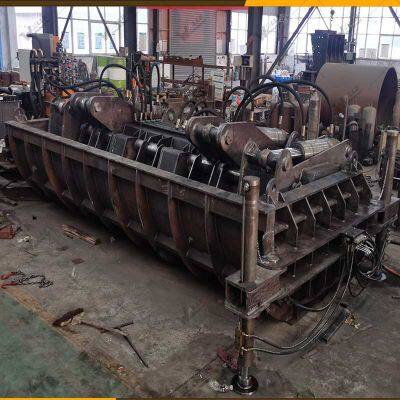

Itis mainly used for packing all kinds of plastic light and thin black andnon-ferrous metal wastes to form a compact cuboid package, which is convenientfor storage and transportation. It is an ideal equipment for metal wastetreatment in steel plants, non-ferrous metal plants and smelters.
characteristic
a：Therotary closed cover structure is adopted, and the opening area of the materialbox is large, which is particularly convenient for feeding large, empty andthin materials.
b：Allmoving parts are hydraulically driven and work stably; High packing pressure,compact packing blocks and high packing efficiency.
c：Themanual & digital valve is simple, convenient, safe and reliable.
|
Q：Can I order a customized grappling hook?
A：Yes, not only that, you can also whether to delete it or not .
Item
| Parameter
| Note
|
1
| Main
| Model
| YG320/220-4000
| 1/320T
|
Cylinder
| Nominal thrust
| 1826KN
| Trip
| 4000MM
|
|
2
| Level①
| Model
| YG200/140-600
| 2/200T
|
Pressing material
|
Cylinder
| Nominal thrust
| 785KN*3
| Trip
| 600MM
|
|
3
| Level②
| Model
| YG200/140-600
| 2/200T
|
Pressing material
|
Cylinder
| Nominal thrust
| 785KN*3
| Trip
| 514MM
|
|
4
| Box size (L*W*H)（MM）
| 5000*2000*1500
|
|
5
| Bale size（L*W*H）（MM）
| (~600)*1000*1000
|
|
6
| Working pressure（Mpa）
| 21.5 Mpa
|
|
7
| Output bale mode
| Crane
|
|
8
| Bale density(Kg/m3)
| ≥2000(Fe)
|
|
9
| Single cycle time
| ≥130S
|
|
10
| Operation mode
| Handle operation
|
|
11
| Equipment weight
| 30T
|
|
12
| Dimensions of equipment
| 6500*2400*2700mm
|
|
13
| Engine
| Model
| HBE
| Power
| 150HP
|
|
Rolling
| 2000r/min
| Quantity
| 1
|
|
14
| Oil pump
| Model
| A4V180+180
| Pressure
| 31.5Mpa
|
|
Flow
| 376ml/r
| Quantity
| 1
|
|
15
| Average fuel consumption
| 15L/h
|
|
12345
Company Profile
Henan Walle Industry Co., Ltd
Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
