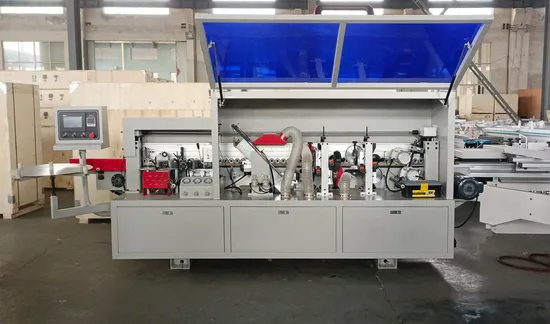

Advanced Linear MDF Edge Banding Machine with EVA Technology

Product Description

Economical PVC Edge Banding Machine Woodworking Edge Bander Machinery with EVA
ZD500
Product Parameters

Banding tape thickness	0.4-3mm
Banding tape width	10-60mm
Workingpiece thickness	10-60mm
Workingpiece length	≥100mm
Workingpiece width	≥50mm
Heating power	1.5kw
Feeding motor power	2.2kw
Gule spreading motor power	0.37kw
End trimming motor power	0.55kw*2
Fine trimming motor power	0.75kw*2
Scraping motor power	0.75kw*2
Polishing motor power	0.18*kw2
Feeding speed	13m/min
Air pressure	0.7Mpa
Total power	6.23kw
Net weight	1300kg
Machine size	3700*750*1500mm

ZD500 has the following five functions:
Gluing; End cutting; Fine trimming; Scrapping; Polishing.
ZD450 series & ZD300~800 series edge banding machine available in a variety of configurations optional to meet your different productions requirements.
If you use our machine, you can achieve the following functions:
1.Symmetrically edge banding with perfect round corners.
2.Invisible glue lines. 3.Clean surface with smoothly edge trimming.
Our Advantages
Our edge banding machine use high quality accessories with the latest design.
1.Band clamping patent, perfectly preventing the bands from moving off its track.
2.Board preheating to get a better gluing effect.
3.Nonstick material glue pot, easy to clean without residue. 4.Dust proof plate setting all along the whole edge banding process can prevent the board from dirt.
5.Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel.
6.The use of six-edges knife for fine trimming leads to a smoother cutting surface. With the design of linear guideway, it can stably working without abrasion. Also not easy to get stuck. 7.Band clamping by pneumatic control on fine trimming and scraping processes without manual adjusting.
8.Scrapping process with dust collecting pipe.
Company Profile
Our products are mainly included Precise panel saw, Edge Banding Machine, Multiple Drilling Machine, Press machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia.
We have established complete sales system. Our company takes the principle of quality frist and customer foremost, and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
