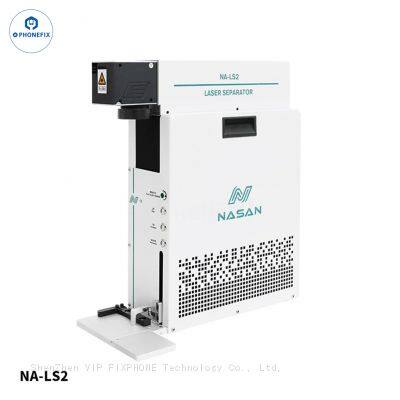

NASAN NA-LS1/NA-LS2 Automatic Laser Machine For iPhone Back Glass Remover Battery Cover Separating Refurbished. NASAN NA-LS1 and NA-LS2 LCD glass laser separator for mobile phone LCD Glass back cover separation removal/laser marking/laser separating/DIY Custom Logo Marking.
Features:
1. NA-LS1/NA-LS2 Laser LCD Repair Machine For cell phone mid frame/bezel/back glass separating.
2. Marking / engraving (wooden, aluminum, paint/metal, paper, plastic, leather).
3. Intelligent ranging system.
4. Simple operation, easy to use.
5. Support cloud download software and drawings (continuous updating).
6. 12 months warranty, online technical support and training is provided.
7. No built-in computer, need to use it with Windows 7/8 system computer together.
Parameters:
Product Name: Laser separating machine.
Model: NA-LS1/NA-LS2.
Function: LCD glass & back cover separating, customize symbol / logo marking.
Voltage/Plug: 110V/220V optional EU/USA/UK optional.
Equipment/Packing Size: 300*496*549 mm/320*519*600mm.
Net/Gross Weight: 25kg/32kg.
Optical Maser: Laser diode, LD.
Laser Watt: 4.5W.
Position: Manually.
Pulse Width(ns): ~5ns.
Peak Power(kW): ~36kW.
Repetition Rate(kHZ): ~25kHZ.
Transverse Mode: TEMoo.
Full Angle Divergence: ＜1.5.
Wave Length: 1.06μm.
Marking Depth: 0.015-0.5mm.
Max Marking Size: 175*175mm.
Light Spot: Φ0.05-0.01mm.
Precision: ≤0.001mm.
Repeat Marking Precision: ≤0.001mm.
Marking Speed: ≤10000mm/s.
Estimated Lifetime Of Laser (Hours): 20000 hours.
Packing: Carton box.
Certificate: CE.
Efficiency: 5mins per piece.
Warranty: 12 months.
Package Includes:
1x Laser Separating Machine
>>
