Mklf500 CNC Vertical Internal, Cylindrical, and Surface Grinding Machine

Product Description

Product Description
Main purposes of the machine tool:

MKLF28-500 CNC Vertical Internal, Cylindrical, and Surface Grinding Machine is a four axis+B-type CNC vertical composite grinder, which can grind multiple surfaces of workpieces such as inner holes, inner taper holes, inner end faces, outer circles, and outer end faces in one clamping. The machine tool adopts a modular structure. The overall layout is shown in the figure above, adopting the form of double columns and crossbeams. Two 7-shaped sliding seats are arranged on the crossbeam. The sliding seats can move left and right in the horizontal direction (X1, X2), and the axis is used for grinding feed. The sliding plate on the sliding seat moves up and down (Z1, Z2), and the axis moves up and down back and forth. Add a B-axis turret on the Z1 axis for grinding the inner hole and inner taper hole; Grinding of Z2 axis end face and outer circle. The positive and negative clearances of each motion axis can be eliminated in the system. The workpiece spindle is fixed on the bed to drive the workpiece to rotate. The electrical box is installed on the back of the bed, and the electrical control box is fixed on the right front of the bed and can rotate, making operation and adjustment convenient.
Product Parameters
Key Technical Parameters for MKLF28-1000 CNC Vertical Internal, Cylindrical, and Surface Grinding Machine

Serial number	Name	Specification
1	Maximum Grinding OD	500mm
2	Grinding Hole Range	100-500mm
3	Maximum Grinding Depth	500mm
4	Workbench diameter	500mm
5	Internal and external circular bouncing	4μm
6	Inner and outer surface roughness	Ra0.4μm

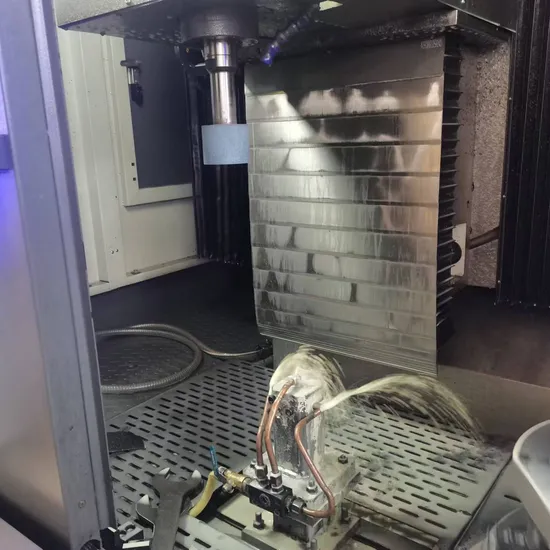

Detailed Photos
.
Company Profile

Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

Packaging & Shipping
After Sales Service

---
