Tongda Textile Machine Doubling Machine with 20 Spindles

Product Description

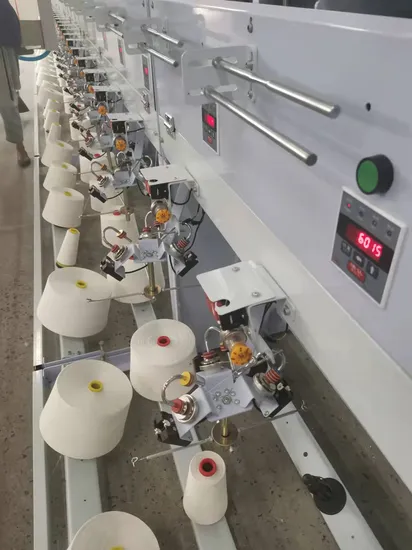

Tongda textile doubling machine with 20 spindles

Tongda adheres to the goal of building intelligent textile equipment, focusing on the research of doubling machine series textile machinery.We have successfully developed twisting and doubling equipment to meet the needs of different customers,and it has been recognized by customers.
Customer demand is our driving force,strong technology is our resource, Our common mission to realize the intelligent upgrading of twist and doubling textile machinery.

Main Technical Data:

Suitable yarn	Cotton and wool short fiber yarns
Yarn count renge	Ne3-80(Nm5-135)
Feeding yarn diameter	Max :230mm
Full package weight	Max :4kg
Spindle arrangement	Double sided
Transmission device	Single spindle
No.of spindles/section	10 spindles or 8 spindles
No.of spindles and No.of sections	Max 120 spindles
Spindle qauqe	340mm
Section length	1700mm
ackage model	Grooved frum
Winding model	Not adjustable
Bobbin type	Min diameter of empty bobbin :inner dia 38mm ,outer dia 43mm
Take-up diameter	Max 200mm
Traverse length	152mm or 215mm
Mechanical speed	Max 600m/min (the technical speed depends the yarn and thetechnical parameters )
Supply fraquency	50/60Hz
Installed power per spindle	0.09kw
Actual power consumption per spindle	0.05-0.07kw(Diffierent according to the process)

Advantage:


Packing and Shipping:

FAQ:
(1) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(4) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(5) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Why Choose Our Company?

A: History: TONGDA Textile machinery Group was establish in 1952. Now have more than 65 years old history.
B: Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine(water Jet loom/Air jet loom/rapier Loom),warping machine, quilting machine and nonwoven machine.
C: We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill.
We also provide workshop layout design and trench design, and air pipe layout design.
D: Product /Quality Guarantee: 1 year warranty for the International standard.
E: After Sale Serivice: We are work online 24 hours. If you have any questions about our machine you can contact us.
F: One-stop Service:
We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Certification:
TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
