Automatic Mineral Pure Waters Filtration Reverse Osmosis Water Treatment Machine

Product Description

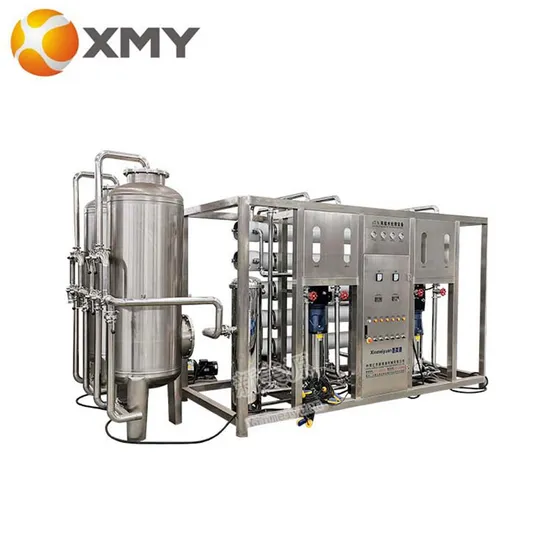

Pure Mineral Water Reverse Osmosis Water Treatment Plant
Reverse osmosis (RO) is a kind of pure water treatment that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.
Technical parameter:

pure water treatment
Capacity	Capacity (Ton Per hour)	General power	Size (L*W*H)	Weight (kg)
RO-500L/H	0.5Ton	0.75kw	1550*900*1820mm	350kg
RO-1000L/H	1ton	1.5kw	1980*900*1940	500kg
RO-2000L/H	2ton	2kw	4800*700*2050	700kg
RO-3000L/H	3ton	5kw	6000*800*2200	800kg
RO-4000L/H	4ton	6.5kw	7000*900*2400	1000kg
RO-5000L/H	5ton	8kw	8000*1000*2700	1500kg
RO-6000L/H	6ton	12kw	8500*1600*1920	2000kg
RO-8000L/H	8ton	15kw	10-00*1870*3000	4000kg
RO-10000L/H	10ton	20kw	12000*1700*3500	4500kg
RO-15000L/H	15ton	25kw	12500*1700*3500	6500kg
RO-20000L/H	20ton	30kw	13000*1900*3500	9000kg
RO-30000L/H	30ton	35kw	13500*2300*3800	12000kg

*Typical pure water treatment Processing:
Raw water pump → Quartz sand filter → Activated carbon filter→ Sodium ion exchange→ Precision filter → High-pressure pump → Reverse osmosis system →UV sterilizer→Ozone sterilizer →Finished Water tank
1. Raw water pump: provide the pressure to Quartz sand filter/active carbon filter
2. Quartz Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4, WATER Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Precision filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system-- main part of pure water treatment plant. The desaltation rate up to 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
8.UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis
9.Ozone sterilizer -- Use ozone Kill bacteria not killed by UV
10.Finished water tank -- For filter water storage
XMY machinery, We located in zhangjiagang city jiangsu province, it is near to shanghai airport Our advantage:
1.Stable machinery quality
2.Professional engineer team
3.Good after service
(we will reply customers within 1 hour once the machine got any problems and give the solution within 24 hours ) Water Lines. --- XMY One partner for all your needs.
We provide: 1. Water treatment system; 2.Bottle blowing machine; 3.Washing filling capping machine; 4.Cap elevator and online sterilizing system; 5.Air blow dryer; 6.Labeling machine ( sticker label/ sleeve shrink label/OPP glue label) 7.Packaging machine (White film/colour film/carton case) 8.Palletizer Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities. Our machine advantage 1. Latest structure with automatic lubricating system ,protect bearing, prevent bearing dry rotary due to lack of oil. 2. No need workers to guard the filling machine, save one labor. 3. High speed, energy efficiency, more stable .

1.Pre-salve service
1). Provide professional suggestions, make proposal and best solution to customers.
2). Design the bottle /layout of machines according to customer's factory size.
3). Welcome to visit factory anytime.
2.After-sales service
1). Installation & debug service, training service. After machine arrive customer's factory, professional engineer(1-2 people) will go to customer's factory to install the machine,debug and provide training service until you can operate the machine well and could adjust the process and treat different failures. The buyer need to supply the round tickets and accommodation of our engineer, and the salary. 2). Quick response within 24 hours . 3). 1 years guarantee , enough spare parts,and life-long technical support. 4). All business information will be confidential to any third party.
Jiangsu Xinmeiyuan Machinery Co.,Ltd.XMY machinery is a professional manufacturer of beverage filling and packing machine in China.Wide range products, Good quality,Reasonable price, Stylish designs and good service help us win customer's trust.1 / Standardized workshop of total 5,000 square meters.2 / The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of waterpipeline,and pneumatic, electrical and mechnical stability.3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.Our Team1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.Our product include:Blowing filling capping monobloc machine, Small bottle water filling production lineJuice filling production line, Carbonated drink filling production line, Water treatment system, Beverage blending system, PET bottle blowing machine, Labeling machine, packing machine. FAQ
Q1:Do you have any reference project? A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:How can I install my machine when it arrives?
A2:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q3 How long time for installation?
A3: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q4: How about the spare parts?
A4: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.
Q5: What is your payment term?
A5: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.

---
